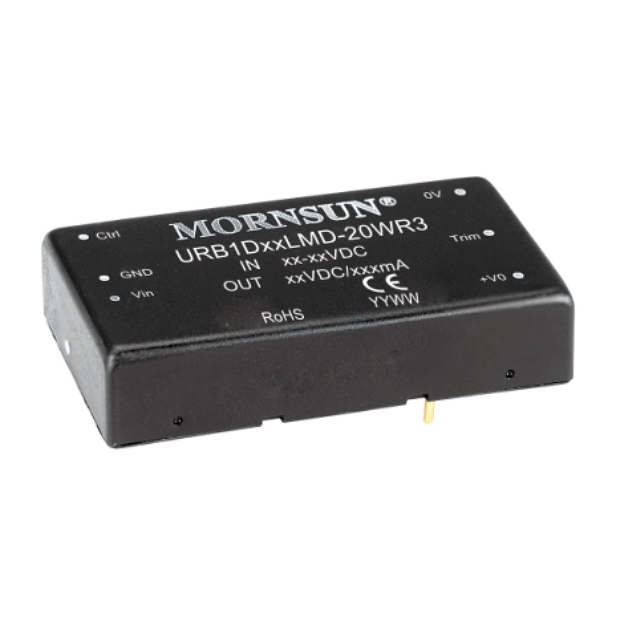

URB1D_LD-20WR3

Features

URB1D_LD-20WR3 series are isolated DC-DC converter products with an ultra-wide 4:1 input voltage and feature efficiency of up to 87%. Input to output isolation is tested with 2250VDC and the converters safely operate in an ambient temperature of -40℃ to +85℃, input under-voltage protection, output short circuit, over-current, over–voltage protection and are offered with various mounting options ideally suiting electronic equipment and railway vehicle applications using 72V, 96V and 110V battery voltages.

URB1D_LD-20WR3
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
URB1D03LD-20WR3 20 40~160 3.3 1 2250 DIP 50.80*25.40*11.80 3D MODEL CE - URB1D03LD-20WR3 - sample request buy on line
URB1D05LD-20WR3 20 40~160 5 1 2250 DIP 50.80*25.40*11.80 3D MODEL CE - URB1D05LD-20WR3 - sample request buy on line
URB1D12LD-20WR3 20 40~160 12 1 2250 DIP 50.80*25.40*11.80 3D MODEL CE - URB1D12LD-20WR3 - sample request buy on line
URB1D15LD-20WR3 20 40~160 15 1 2250 DIP 50.80*25.40*11.80 3D MODEL CE - URB1D15LD-20WR3 - sample request buy on line
URB1D24LD-20WR3 20 40~160 24 1 2250 DIP 50.80*25.40*11.80 3D MODEL CE - URB1D24LD-20WR3 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.
