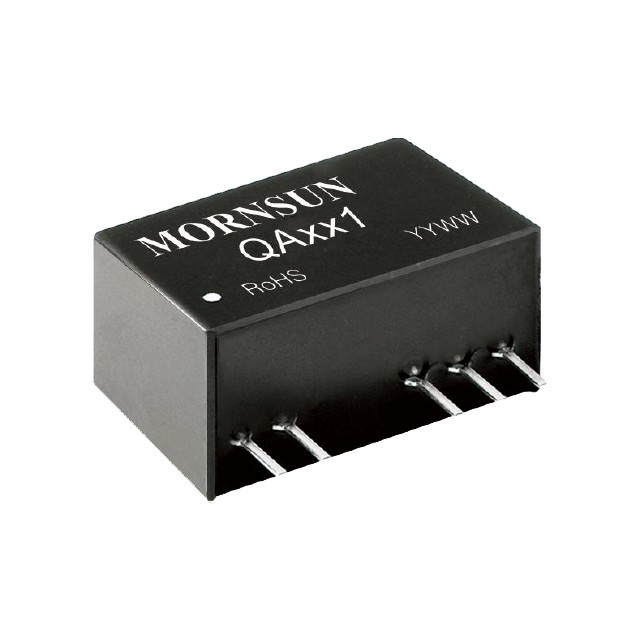

QAxx1

Features

QAxx1 series are DC-DC converters for IGBT drivers. Their ultra low isolation capacitance can improve the capability of anti-interference. The built-in common-ground mode of the unique asymmetric voltage output mode reduces the driver loss of IGBT driver. They feature short-circuit protection and auto-recovery.

QAxx1
MORE
数据加载中

Swipe to view all →
Product No. Vin(VDC) Operating Temperature Iout(A) Positive Output(VDC) Negative Output(VDC) Efficiency(%) Isolation(VAC) Package Features Footprint & 3D Certification Datasheet Sample Buy
QA121 12(±5%) -40~105℃ 120/-120 15 -8 81 3000 SIP7 No-load operation allowed 3D MODEL - QA121 - sample request buy on line
QA241 24(±5%) -40~105℃ 120/-120 15 -8 81 3000 SIP7 No-load operation allowed 3D MODEL - QA241 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
QA121
QA241
