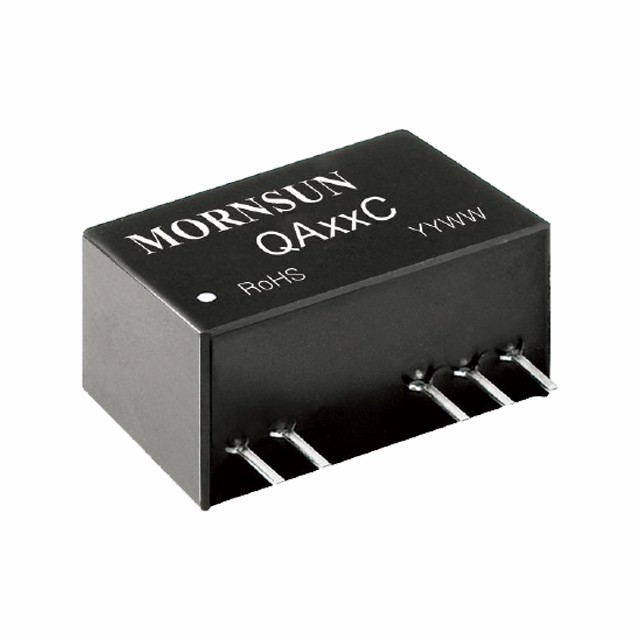

QAxCx
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
QAxCx is a DC-DC module power supply designed for SiC driver requiring two sets of isolation power supply. The mode of common ground outputs is adopted internally for better energy provision of SiC turn-on and turn-off. Output short-circuit protection and self-recovery capabilities are also provided.
| Product No. | Vin(VDC) | Iout | Operating Temperature | Positive Output(VDC) | Negative Output(VDC) | Efficiency(%) | Isolation(VAC) | Package | Features | Footprint & 3D | Markings | Datasheet | Sample |
| QA01C | 15(±10%) | 100/-100 | -40~105℃ | 20 | -4 | 81 | 3500 | SIP | Short-Circuit Protection | ||||
| QA01C-18 | 15(±10%) | 100/-100 | -40~105℃ | 18 | -3 | 81 | 3500 | SIP | Short-Circuit Protection | - | |||
| QA051C | 5(±10%) | 80/-40 | -40~105℃ | 20 | -5 | 81 | 3500 | SIP | Short-Circuit Protection | - | |||
| QA121C2 | 12(±3%) | 111/-111 | -40~105℃ | 15 | -3.5 | 81 | 3500 | SIP | Short-Circuit Protection | - | |||
| QA151C3 | 15(±3%) | 100/-100 | -40~105℃ | 15 | -4 | 81 | 3500 | SIP | Short-Circuit Protection | - | |||
| QA121C-20 | 12 | 100/-100 | -40℃ to +105℃ | 20 | -5 | 79 | 3500 | SIP | Short-Circuit Protection | - | |||
| QA1201C-20 | 12(±3%) | 100/-100 | -40~105℃ | 20 | -4 | 80 | 3500 | SIP | Short-Circuit Protection | - | |||
| QA2401C-20 | 24(±3%) | 100/-100 | -40~105℃ | 20 | -4 | 81 | 3500 | SIP | Short-Circuit Protection | - |
* For reference only. The detailed info please refer to the datasheet.
