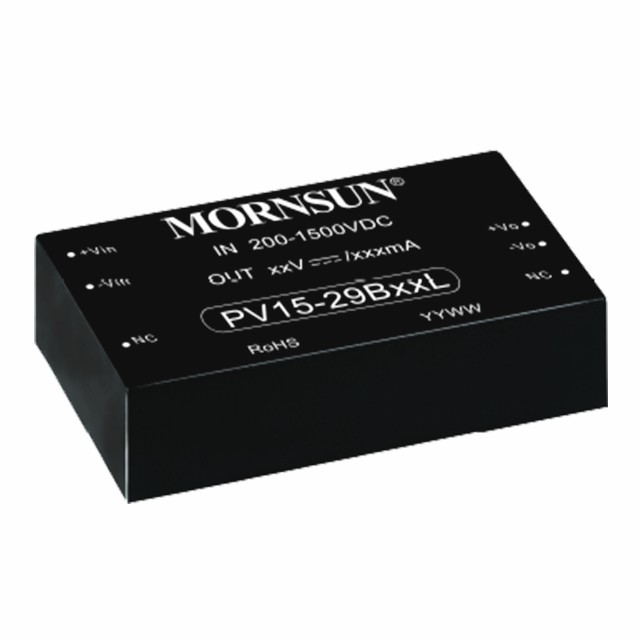

PV15-29BxxL

Features

PV15-29BxxL series is 200-1500VDC ultra wide input voltage regulated DC-DC converter, which has advantages such as high efficiency, high reliability and high safety isolation. The series products are widely used in industries such as photovoltaic power generation and high voltage frequency conversion, provide a stable operating voltage for the load device, Its multiple protection features can enhance the safety performance of the module power supply and the load under abnormal working conditions.

PV15-29BxxL
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
PV15-29B05L 10 200~1500 5 1 4000VAC DIP 109.00*58.50*30.00 3D MODEL - PV15-29B05L - sample request buy on line
PV15-29B12L 15 200~1500 12 1 4000VAC DIP 109.00*58.50*30.00 3D MODEL - PV15-29B12L - sample request buy on line
PV15-29B15L 15 200~1500 15 1 4000VAC DIP 109.00*58.50*30.00 3D MODEL - PV15-29B15L - sample request buy on line
PV15-29B24L 15 200~1500 24 1 4000VAC DIP 109.00*58.50*30.00 3D MODEL - PV15-29B24L - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
PV15-29B05L
PV15-29B12L
PV15-29B15L
PV15-29B24L
