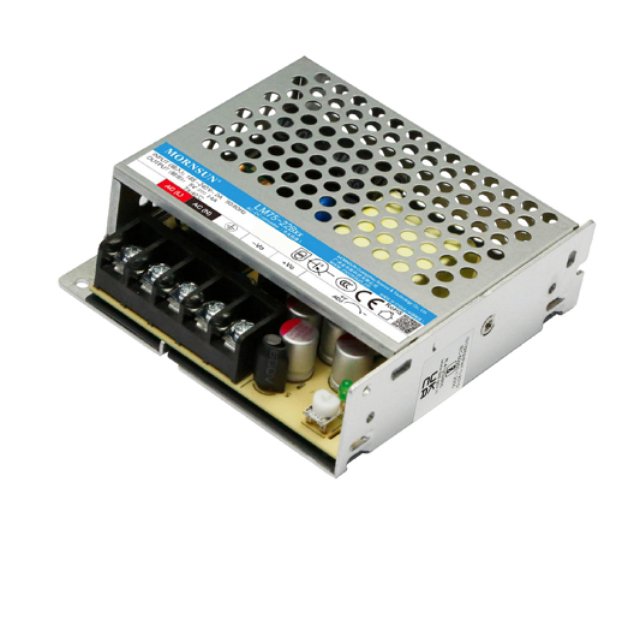

LM75-22Bxx

Features

LM75-22Bxx series is one of Mornsun's enclosed AC-DC switching power supply. It features AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency, high reliability and double or reinforced insulation. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.

LM75-22Bxx
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VAC) Nominal Vout and Io(V/A) Operating Temperature No. of Outputs Efficiency(%) Isolation(VAC) 3D Impression Drawing (.stp) Certification Datasheet Sample Buy
LM75-22B05 70 165~264VAC/200~373VDC 5V/14A -30℃ to +70℃ 1 86 4000 LM75-22Bxx.stp CE 3C UL - LM75-22B05 - sample request buy on line
LM75-22B12 72 165~264VAC/200~373VDC 12V/6A -30℃ to +70℃ 1 88 4000 LM75-22Bxx.stp CE 3C UL - LM75-22B12 - sample request buy on line
LM75-22B15 75 165~264VAC/200~373VDC 15V/5A -30℃ to +70℃ 1 88 4000 LM75-22Bxx.stp CE 3C UL - LM75-22B15 - sample request buy on line
LM75-22B36 75.6 165~264VAC/200~373VDC 36V/2.1A -30℃ to +70℃ 1 90 4000 LM75-22Bxx.stp CE 3C UL - LM75-22B36 - sample request buy on line
LM75-22B24 76.8 165~264VAC/200~373VDC 24V/3.2A -30℃ to +70℃ 1 90 4000 LM75-22Bxx.stp CE 3C UL - LM75-22B24 - sample request buy on line
LM75-22B48 76.8 165~264VAC/200~373VDC 48V/1.6A -30℃ to +70℃ 1 91.5 4000 LM75-22Bxx.stp CE 3C UL - LM75-22B48 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
LM75-22B05
LM75-22B12
LM75-22B15
LM75-22B36
LM75-22B24
LM75-22B48
