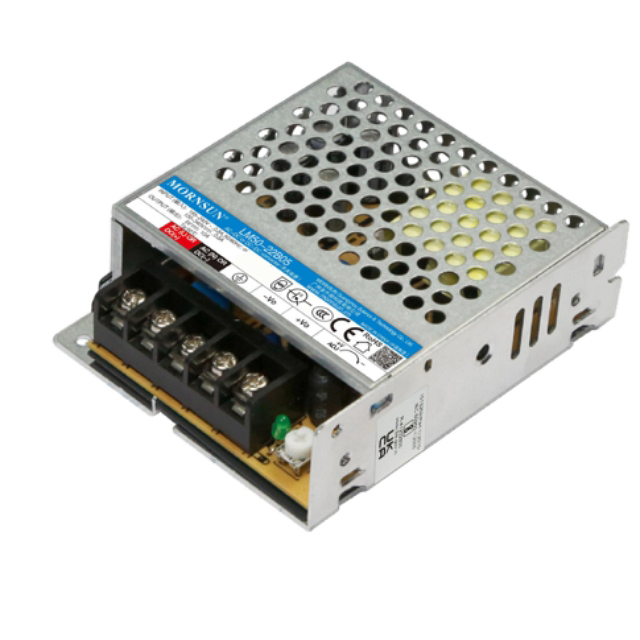

LM50-22Bxx

Features

LM50-22Bxx series is one of Mornsun's enclosed AC-DC switching power supply. It features AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency, high reliability and double or reinforced insulation. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.

MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VAC) Nominal Vout and Io(V/A) Operating Temperature No. of Outputs Efficiency(%) Isolation(VAC) Footprint & 3D Certification Datasheet Sample Buy
LM50-22B05 50 165-264VAC/180-373VDC 5V/10A -30℃ to +70℃ 1 83 4000
LM50-22B12 50.4 165-264VAC/180-373VDC 12V/4.2A -30℃ to +70℃ 1 86 4000
LM50-22B15 51 165-264VAC/180-373VDC 15V/3.4A -30℃ to +70℃ 1 87 4000
LM50-22B36 52.2 165~264VAC/180~373VDC 36V/1.45A -30℃ to +70℃ 1 89 4000
LM50-22B24 52.8 165-264VAC/180-373VDC 24V/2.2A -30℃ to +70℃ 1 88 4000
LM50-22B48 52.8 165~264VAC/180~373VDC 48V/1.1A -30℃ to +70℃ 1 90 4000

* For reference only. The detailed info please refer to the datasheet.
