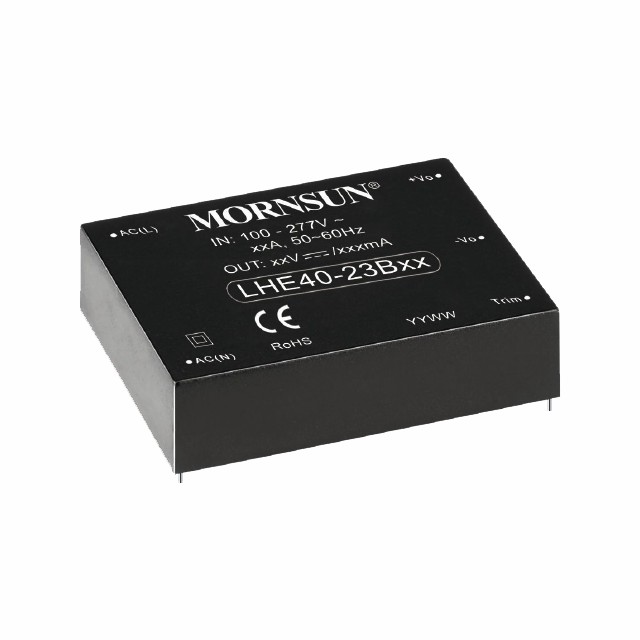

LHE40-23Bxx

Features

LHE40-23Bxx series are 40W efficient environmental-protection AC-DC module power supplies. It features universal AC input and at the same time accepts DC input voltage, low power consumption, high efficiency, high reliability, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4, CISPR32/EN55032, and is safety certified to IEC/EN/UL62368 standards. The converters are widely used in areas of industrial, electricity, office and applications with unstable supply voltage. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet.

LHE40-23Bxx
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VAC) Vout(VDC) No. of Outputs Isolation(VAC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
LHE40-23B03 40 85~305 3.3 1 4000 DIP 89.00*63.50*25.00 3D MODEL CE - LHE40-23B03 - sample request buy on line
LHE40-23B05 40 85~305 5 1 4000 DIP 89.00*63.50*25.00 3D MODEL CE - LHE40-23B05 - sample request buy on line
LHE40-23B12 40 85~305 12 1 4000 DIP 89.00*63.50*25.00 3D MODEL CE - LHE40-23B12 - sample request buy on line
LHE40-23B15 40 85~305 15 1 4000 DIP 89.00*63.50*25.00 3D MODEL CE - LHE40-23B15 - sample request buy on line
LHE40-23B24 40 85~305 24 1 4000 DIP 89.00*63.50*25.00 3D MODEL CE - LHE40-23B24 - sample request buy on line
LHE40-23B48 40 85~305 48 1 4000 DIP 89.00*63.50*25.00 3D MODEL CE - LHE40-23B48 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
LHE40-23B03
LHE40-23B05
LHE40-23B12
LHE40-23B15
LHE40-23B24
LHE40-23B48
