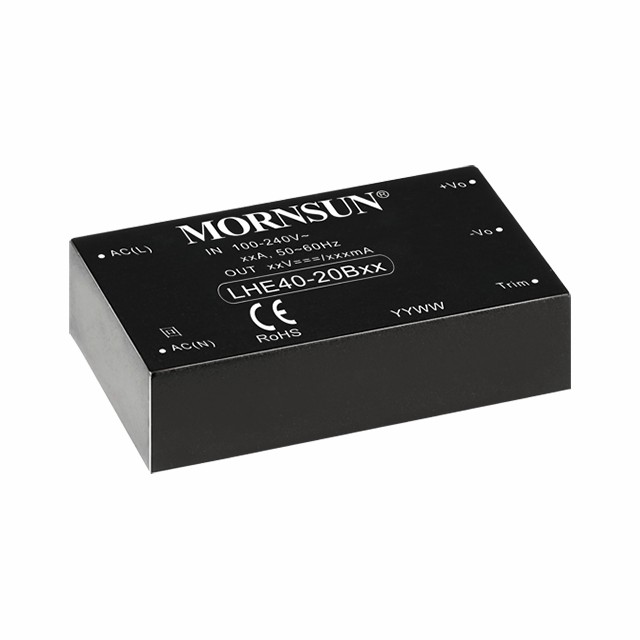

LHE40-20Bxx

Features

LHE40-20Bxx series are 40W efficient environmental-protection AC-DC module power supplies. It features universal AC input and at the same time accepts DC input voltage, low power consumption, high efficiency, high reliability, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets UL62368 and EN62368 standards. The converters are widely used in control, electricity, office applications. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet.

LHE40-20Bxx
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VAC) Vout(VDC) No. of Outputs Isolation(VAC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
LHE40-20B03 26.4 85~264 3.3 1 4000 DIP 89.00*63.50*25.00 3D MODEL CE - LHE40-20B03 - sample request buy on line
LHE40-20B05 40 85~264 5 1 4000 DIP 89.00*63.50*25.00 3D MODEL CE - LHE40-20B05 - sample request buy on line
LHE40-20B12 40 85~264 12 1 4000 DIP 89.00*63.50*25.00 3D MODEL CE - LHE40-20B12 - sample request buy on line
LHE40-20B15 40 85~264 15 1 4000 DIP 89.00*63.50*25.00 3D MODEL CE - LHE40-20B15 - sample request buy on line
LHE40-20B24 40 85~264 24 1 4000 DIP 89.00*63.50*25.00 3D MODEL CE - LHE40-20B24 - sample request buy on line
LHE40-20B48 40 85~264 48 1 4000 DIP 89.00*63.50*25.00 3D MODEL CE - LHE40-20B48 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
LHE40-20B03
LHE40-20B05
LHE40-20B12
LHE40-20B15
LHE40-20B24
LHE40-20B48
