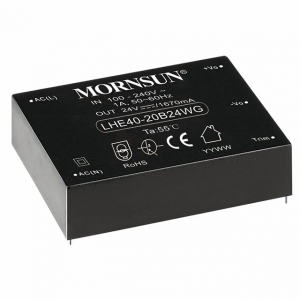

LHE40-20B24WG
Our product's UL certification after May 1, 2024, is currently invalid. We are working diligently to resolve this. We apologize and appreciate your understanding.
Features
LHE40-20B24WG AC-DC converters are highly efficient, environmental-friendly 40W power modules. It features universal AC input and at the same time accepts DC input voltage, low power consumption, high efficiency, high reliability, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 standards. The converters are widely used in industrial, power, office and white goods applications. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet
| Product No. | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Iout | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| LHE40-20B24WG | 40 | 85-264 | 100-370 | 24 | 1670mA | 1 | 4000VAC | DIP | 89.00*63.50*25.00 |
* For reference only. The detailed info please refer to the datasheet.
