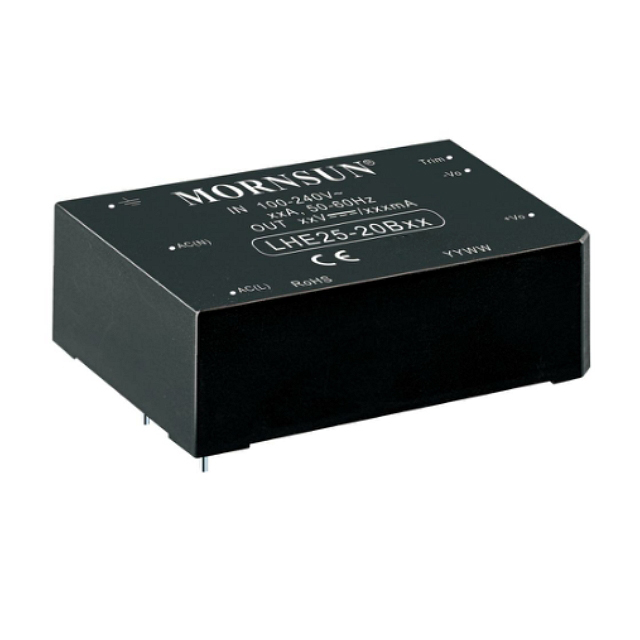

LHE25-20Bxx

Features

LHE25-20Bxx series is a compact size power converter offered by Mornsun. It features universal input voltage, taking both DC and AC input voltage, low power consumption, high efficiency, high reliability, safer isolation. It offers good EMC performance, which meet IEC/EN61000-4, CISPR32/EN55032, UL62368 and EN62368 standards, and it’s widely used in industrial, office and civil applications. For harsh EMC environment, the application circuit in the datasheet is strongly recommended.

LHE25-20Bxx
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VAC) Vout(VDC) No. of Outputs Isolation(VAC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
LHE25-20B03 13.53 85~264 3.3 1 4000 DIP 70.00*48.00*23.50 3D MODEL CE UL CB - LHE25-20B03 - sample request buy on line
LHE25-20B05 20.5 85~264 5 1 4000 DIP 70.00*48.00*23.50 3D MODEL CE UL CB - LHE25-20B05 - sample request buy on line
LHE25-20B09 25 85~264 9 1 4000 DIP 70.00*48.00*23.50 3D MODEL CE UL CB - LHE25-20B09 - sample request buy on line
LHE25-20B12 25 85~264 12 1 4000 DIP 70.00*48.00*23.50 3D MODEL CE UL CB - LHE25-20B12 - sample request buy on line
LHE25-20B15 25 85~264 15 1 4000 DIP 70.00*48.00*23.50 3D MODEL CE UL CB - LHE25-20B15 - sample request buy on line
LHE25-20B24 25 85~264 24 1 4000 DIP 70.00*48.00*23.50 3D MODEL CE UL CB - LHE25-20B24 - sample request buy on line
LHE25-20B48 25 85~264 48 1 4000 DIP 70.00*48.00*23.50 3D MODEL CE UL CB - LHE25-20B48 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.
