LHE15-23Bxx

Features

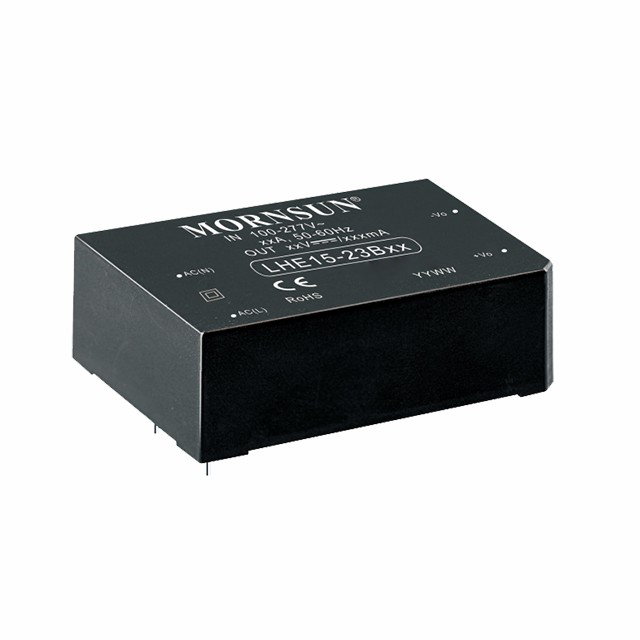

LHE15-23Bxx AC-DC converters are highly efficient, environmental-friendly 15W power modules. It features universal AC input and at the same time accepts DC input voltage, low power consumption, high efficiency, high reliability and double or reinforced insulation with an input to output isolation test voltage of 4000VAC. The converters meet IEC/EN61000-4, CISPR32/EN55032, UL/IEC62368 and EN62368 standards, and are widely used in industrial, electricity and civil applications. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet.

LHE15-23Bxx
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VAC) Vout(VDC) No. of Outputs Isolation(VAC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
LHE15-23B03 9.9 85~305 3.3 1 4000 DIP 62.00*45.00*22.50 3D MODEL CE UL CB - LHE15-23B03 - sample request buy on line
LHE15-23B05 14 85~305 5 1 4000 DIP 62.00*45.00*22.50 3D MODEL CE UL CB - LHE15-23B05 - sample request buy on line
LHE15-23B09 15 85~305 9 1 4000 DIP 62.00*45.00*22.50 3D MODEL CE UL CB - LHE15-23B09 - sample request buy on line
LHE15-23B12 15 85~305 12 1 4000 DIP 62.00*45.00*22.50 3D MODEL CE UL CB - LHE15-23B12 - sample request buy on line
LHE15-23B15 15 85~305 15 1 4000 DIP 62.00*45.00*22.50 3D MODEL CE UL CB - LHE15-23B15 - sample request buy on line
LHE15-23B24 15 85~305 24 1 4000 DIP 62.00*45.00*22.50 3D MODEL CE UL CB - LHE15-23B24 - sample request buy on line
LHE15-23B48 15 85~305 48 1 4000 DIP 62.00*45.00*22.50 3D MODEL CE UL CB - LHE15-23B48 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
LHE15-23B03
LHE15-23B05
LHE15-23B09
LHE15-23B12
LHE15-23B15
LHE15-23B24
LHE15-23B48
