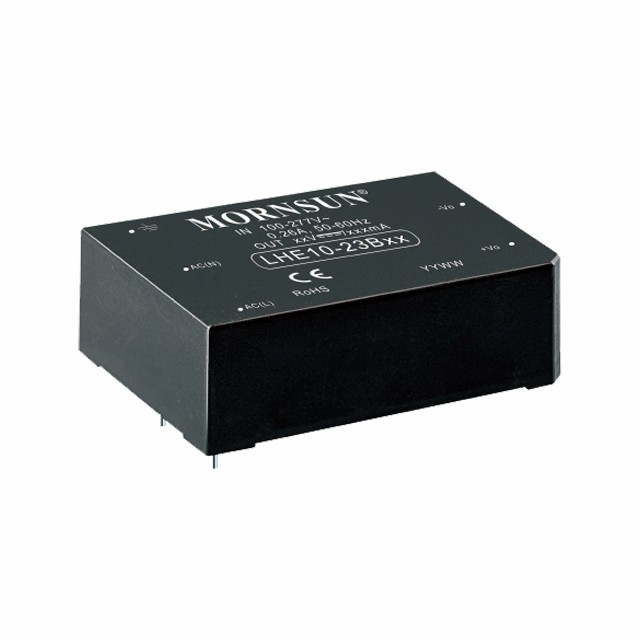

LHE10-23Bxx

Features

LHE10-23Bxx series AC-DC converters are highly efficient, environmental-friendly 10W power modules. It features universal AC input and at the same time accepts DC input voltage, low power consumption, high efficiency, high reliability and double or reinforced insulation with an input to output isolation test voltage of 4000VAC. The converters meet IEC/EN61000-4, CISPR32/EN55032, UL/IEC62368 and EN62368 standards, and are widely used in industrial, electricity, instrumentation, telecommunications and civil applications. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet.

LHE10-23Bxx
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VAC) Vout(VDC) No. of Outputs Isolation(VAC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
LHE10-23B03 10 85~305 3.3 1 4000 DIP 55.00*45.00*21.00 3D MODEL CE - LHE10-23B03 - sample request buy on line
LHE10-23B05 10 85~305 5 1 4000 DIP 55.00*45.00*21.00 3D MODEL CE - LHE10-23B05 - sample request buy on line
LHE10-23B09 10 85~305 9 1 4000 DIP 55.00*45.00*21.00 3D MODEL CE - LHE10-23B09 - sample request buy on line
LHE10-23B12 10 85~305 12 1 4000 DIP 55.00*45.00*21.00 3D MODEL CE - LHE10-23B12 - sample request buy on line
LHE10-23B15 10 85~305 15 1 4000 DIP 55.00*45.00*21.00 3D MODEL CE - LHE10-23B15 - sample request buy on line
LHE10-23B24 10 85~305 24 1 4000 DIP 55.00*45.00*21.00 3D MODEL CE - LHE10-23B24 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
LHE10-23B03
LHE10-23B05
LHE10-23B09
LHE10-23B12
LHE10-23B15
LHE10-23B24
