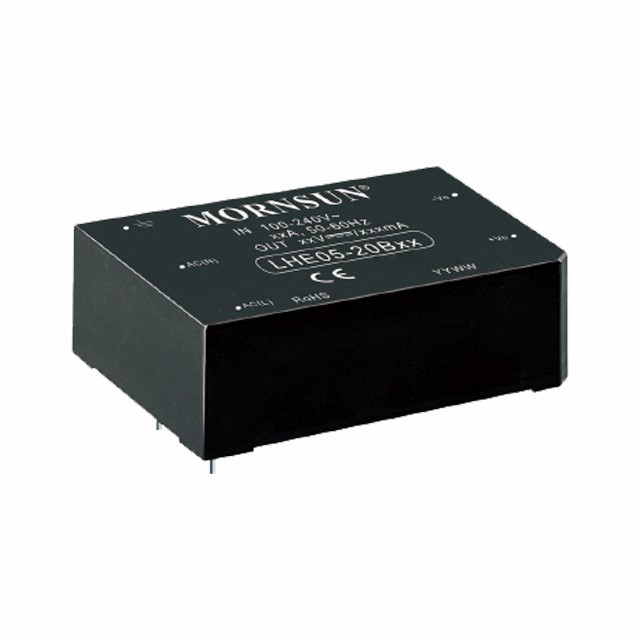

LHE05-20Bxx

Features

LHE05-20Bxx series is one of Mornsun’s compact size power converters. It features universal AC input and at the same time accepts DC input voltage, low power consumption, high efficiency, high reliability, reinforced isolation. It offers good EMC performance compliant to IEC/EN61000-4 and CISPR32/EN55032 and meets IEC/EN/UL62368 standards. The converters are widely used in industrial, office and civil applications. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet.

LHE05-20Bxx
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VAC) Vout(VDC) No. of Outputs Isolation(VAC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
LHE05-20B03 4 85~264 3.3 1 4000 DIP 48.50*36.00*20.50 3D MODEL CE UL CB - LHE05-20B03 - sample request buy on line
LHE05-20B05 5 85~264 5 1 4000 DIP 48.50*36.00*20.50 3D MODEL CE UL CB - LHE05-20B05 - sample request buy on line
LHE05-20B09 5 85~264 9 1 4000 DIP 48.50*36.00*20.50 3D MODEL CE UL CB - LHE05-20B09 - sample request buy on line
LHE05-20B12 5 85~264 12 1 4000 DIP 48.50*36.00*20.50 3D MODEL CE UL CB - LHE05-20B12 - sample request buy on line
LHE05-20B15 5 85~264 15 1 4000 DIP 48.50*36.00*20.50 3D MODEL CE UL CB - LHE05-20B15 - sample request buy on line
LHE05-20B24 5 85~264 24 1 4000 DIP 48.50*36.00*20.50 3D MODEL CE UL CB - LHE05-20B24 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
LHE05-20B03
LHE05-20B05
LHE05-20B09
LHE05-20B12
LHE05-20B15
LHE05-20B24
