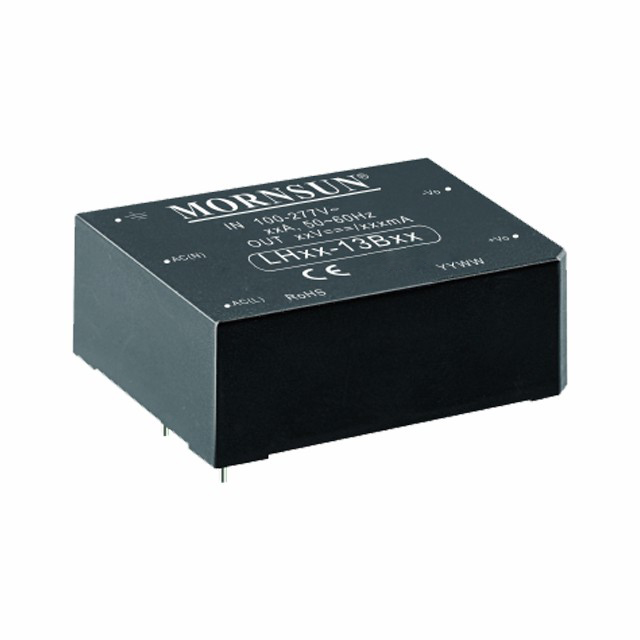

LH20-13Bxx

Features

LH20-13Bxx series is a compact size power converter offered by Mornsun. It features universal input voltage, taking both DC and AC input voltage, low power consumption, high efficiency, high reliability, safer isolation. It offers good EMC performance, which meet IEC/EN61000-4, CISPR22/EN55022, UL60950 and EN60950 standards, and it’s widely used in industrial, office and civil applications. Note: Please refer to Design Reference when module being used in a bad EMC environment.

LH20-13Bxx
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VAC) Vout(VDC) No. of Outputs Isolation(VAC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
LH20-13B03 11.55 85~305 3.3 1 3000 DIP 70.0*48.0*23.5 3D MODEL CE UL CB - LH20-13B03 - sample request buy on line
LH20-13B05 17.5 85~305 5 1 3000 DIP 70.0*48.0*23.5 3D MODEL CE UL CB - LH20-13B05 - sample request buy on line
LH20-13B09 20 85~305 9 1 3000 DIP 70.0*48.0*23.5 3D MODEL CE UL CB - LH20-13B09 - sample request buy on line
LH20-13B12 20 85~305 12 1 3000 DIP 70.0*48.0*23.5 3D MODEL CE UL CB - LH20-13B12 - sample request buy on line
LH20-13B15 20 85~305 15 1 3000 DIP 70.0*48.0*23.5 3D MODEL CE UL CB - LH20-13B15 - sample request buy on line
LH20-13B24 20 85~305 24 1 3000 DIP 70.0*48.0*23.5 3D MODEL CE UL CB - LH20-13B24 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
LH20-13B03
LH20-13B05
LH20-13B09
LH20-13B12
LH20-13B15
LH20-13B24
