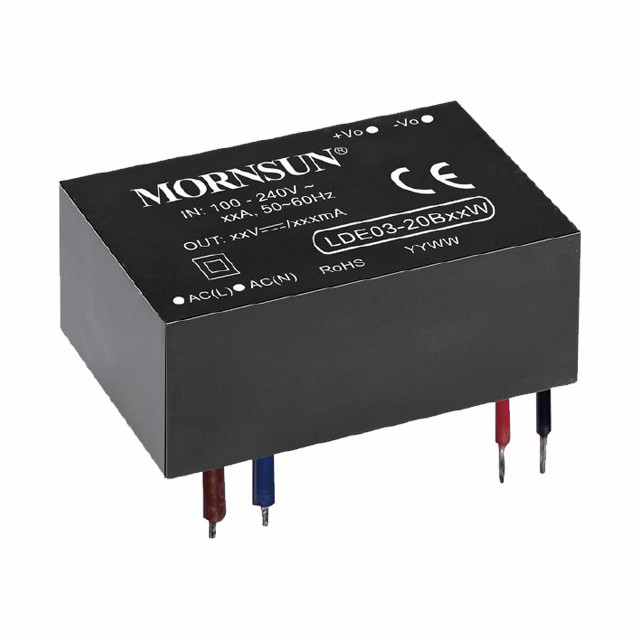

LDE03-20BxxW
Features
LDE03-20BxxW Series is one of Mornsun’s compact size power converter. It features universal AC input and at the same time accepts DC input voltage, low power consumption, high efficiency and double or reinforced insulation. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet
| Product No. | Power(W) | Vin(VAC) | Vout(VDC) | No. of Outputs | Isolation(VAC) | Package | Dimension(mm) | 3D Impression Drawing (.stp) | Certification | Datasheet | Sample | Buy |
| LDE03-20B03W | 2.3 | 85~264 | 3.3 | 1 | 4000 | DIP | 37.00*24.50*18.00 |
|
-
|
-
|
|
|
| LDE03-20B15W | 3 | 85~264 | 5 | 1 | 4000 | DIP | 37.00*24.50*18.00 |
|
-
|
-
|
|
|
| LDE03-20B05W | 3 | 85~264 | 5 | 1 | 4000 | DIP | 37.00*24.50*18.00 |
|
-
|
-
|
|
|
| LDE03-20B09W | 3 | 85~264 | 9 | 1 | 4000 | DIP | 37.00*24.50*18.00 |
|
-
|
-
|
|
|
| LDE03-20B12W | 3 | 85~264 | 12 | 1 | 4000 | DIP | 37.00*24.50*18.00 |
|
-
|
-
|
|
|
| LDE03-20B24W | 3 | 85~264 | 24 | 1 | 4000 | DIP | 37.00*24.50*18.00 |
|
-
|
-
|
|
|
* For reference only. The detailed info please refer to the datasheet.
