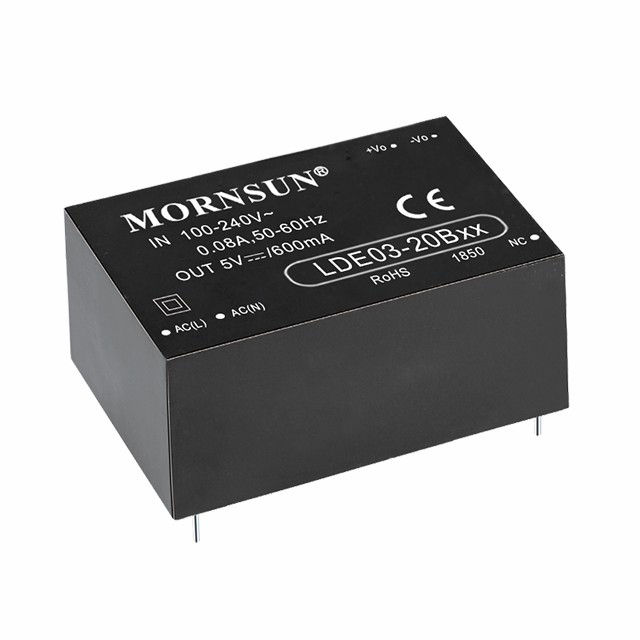

LDE03-20Bxx
Features
LDE03-20Bxx series is one of Mornsun’s compact size power converter. It features universal AC input and at the same time accepts DC input voltage, low power consumption, high efficiency, high reliability and double or reinforced insulation. It offers excellent EMC performance and for extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet. The converters meet CISPR32/EN55032, UL62368, EN62368, IEC62368 standards and are widely used in industrial, medical, electricity, instrumentation, telecommunications applications.
| Product No. | Power(W) | Vin(VAC) | Vout(VDC) | No. of Outputs | Isolation(VAC) | Package | Dimension(mm) | 3D Impression Drawing (.stp) | Certification | Datasheet | Sample | Buy |
| LDE03-20B03 | 2.3 | 85~264 | 3.3 | 1 | 4000 | DIP | 37.00*24.50*18.00 |
|
-
|
-
|
|
|
| LDE03-20B05 | 3 | 85~264 | 5 | 1 | 4000 | DIP | 37.00*24.50*18.00 |
|
-
|
-
|
|
|
| LDE03-20B09 | 3 | 85~264 | 9 | 1 | 4000 | DIP | 37.00*24.50*18.00 |
|
-
|
-
|
|
|
| LDE03-20B12 | 3 | 85~264 | 12 | 1 | 4000 | DIP | 37.00*24.50*18.00 |
|
-
|
-
|
|
|
| LDE03-20B15 | 3 | 85~264 | 15 | 1 | 4000 | DIP | 37.00*24.50*18.00 |
|
-
|
-
|
|
|
| LDE03-20B24 | 3 | 85~264 | 24 | 1 | 4000 | DIP | 37.00*24.50*18.00 |
|
-
|
-
|
|
|
* For reference only. The detailed info please refer to the datasheet.
| Product No. |
| LDE03-20B03 |
| LDE03-20B05 |
| LDE03-20B09 |
| LDE03-20B12 |
| LDE03-20B15 |
| LDE03-20B24 |
