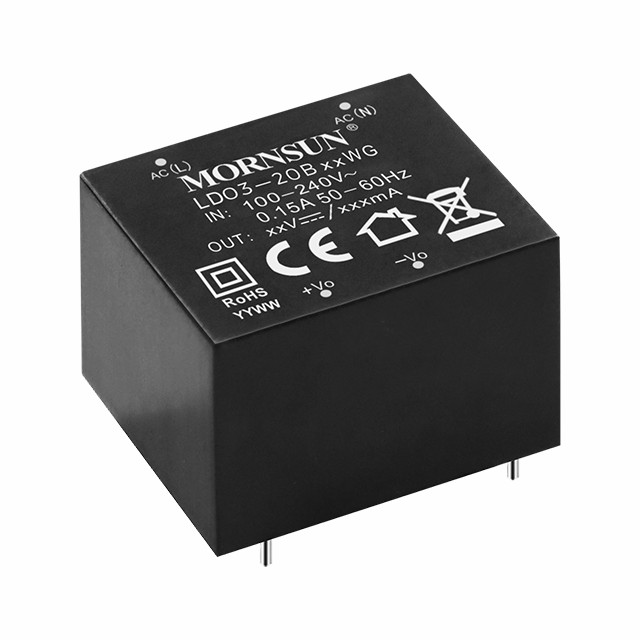

LD03-20BxxWG

Features

LD03-20BxxWG series is one of Mornsun AC/DC power module for white goods. The size, pin and package of this products are in line with the white goods series. It features compact size, high efficiency and high reliability and meet EMI Class B(EN55032) with built-in filter. They are widely used in industrial electronic equipment, commercial office, consumer electronics and white goods area like smart home. The product integrates various protection functions and cost-effective.

MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VAC) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VAC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
LD03-20B05WG 3 85-264 120-373 5 1 4000 DIP 32.3*27.3*21.8
LD03-20B12WG 3 85-264 120-373 12 1 4000 DIP 32.3*27.3*21.8
LD03-20B24WG 3 85-264 120-373 24 1 4000 DIP 32.3*27.3*21.8

* For reference only. The detailed info please refer to the datasheet.
