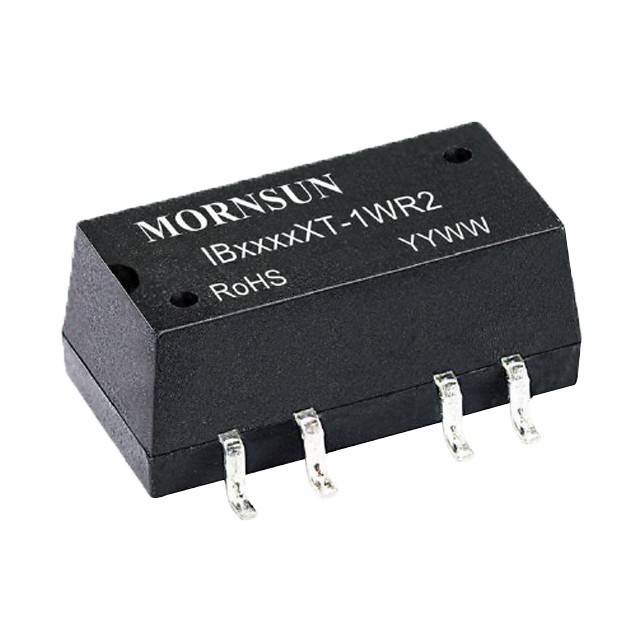

IB_XT-1WR2

Features

IB_XT-1WR2 series are especially designed for distributed power supply systems where an isolated voltage is required with the following application characteristics:
1. The voltage to the input of the power supply is relatively stable with a variation of ±5%Vin nominal;

2. Input to Output isolation of up to 1500VDC is necessary;

3. Applications with a tight line and load regulation requirement combined with low ripple & noise on the output.

IB_XT-1WR2
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
IB1205XT-1WR2 1 11.4~12.6 5 1 1500 SMD 15.24*11.2*7.25 3D MODEL CE - IB1205XT-1WR2 - sample request buy on line
IB1212XT-1WR2 1 11.4~12.6 12 1 1500 SMD 15.24*11.2*7.25 3D MODEL CE - IB1212XT-1WR2 - sample request buy on line
IB1215XT-1WR2 1 11.4~12.6 15 1 1500 SMD 15.24*11.2*7.25 3D MODEL CE - IB1215XT-1WR2 - sample request buy on line
IB2405XT-1WR2 1 22.8~25.2 5 1 1500 SMD 15.24*11.2*7.25 3D MODEL CE - IB2405XT-1WR2 - sample request buy on line
IB2412XT-1WR2 1 22.8~25.2 12 1 1500 SMD 15.24*11.2*7.25 3D MODEL CE - IB2412XT-1WR2 - sample request buy on line
IB2415XT-1WR2 1 22.8~25.2 15 1 1500 SMD 15.24*11.2*7.25 3D MODEL CE - IB2415XT-1WR2 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
IB1205XT-1WR2
IB1212XT-1WR2
IB1215XT-1WR2
IB2405XT-1WR2
IB2412XT-1WR2
IB2415XT-1WR2
