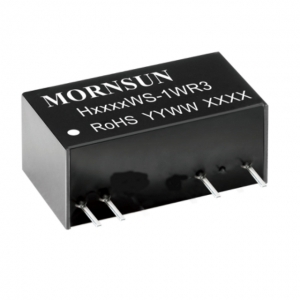

H_WS-1WR3
Features
G_WS-1WR3&H_WS-1WR3seriesmeetreinforcedinsulationrequirements.Theyarespeciallydesignedforapplicationswhererequire compactsize,highisolation,lowisolationcapacitorandlowleakagecurrentpower.Theyarewidelyusedinmedical,electricity,IGBT driverandsoon.Theyaresuitablefor: 1.Wherethevoltageoftheinputpowersupplyisstable(voltagevariation:±10%Vin); 2.Whereisolationisnecessarybetweeninputandoutput(isolationvoltage≤5000VACor6000VDC); 3.Wheredonothashighrequirementoflineregulationandtheripple&noiseoftheoutputvoltage; Suchas,medicalcollectionisolation,highvoltagecollectioncircuitandIGBTdrivecircuit.
Product No. | Power(W) | Vin(VDC) | Vout(VDC) | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample | Buy |
H1203WS-1WR3 | 1 | 12(10.8-13.2) | 3.3 | 1 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | |||||
H1205WS-1WR3 | 1 | 12(10.8-13.2) | 5 | 1 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | |||||
H1209WS-1WR3 | 1 | 12(10.8-13.2) | 9 | 1 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | |||||
H1212WS-1WR3 | 1 | 12(10.8-13.2) | 12 | 1 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | |||||
H1215WS-1WR3 | 1 | 12(10.8-13.2) | 15 | 1 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | |||||
H1224WS-1WR3 | 1 | 12(10.8-13.2) | 24 | 1 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | |||||
H2405WS-1WR3 | 1 | 24(21.6-26.4) | 5 | 1 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | |||||
H2409WS-1WR3 | 1 | 24(21.6-26.4) | 9 | 1 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | |||||
H2412WS-1WR3 | 1 | 24(21.6-26.4) | 12 | 1 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | |||||
H2415WS-1WR3 | 1 | 24(21.6-26.4) | 15 | 1 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | |||||
H2424WS-1WR3 | 1 | 24(21.6-26.4) | 24 | 1 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | |||||
H0503WS-1WR3 | 1 | 5(4.5-5.5) | 3.3 | 1 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | - | ||||
H0505WS-1WR3 | 1 | 5(4.5-5.5) | 5 | 1 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | - | ||||
H0509WS-1WR3 | 1 | 5(4.5-5.5) | 9 | 1 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | - | ||||
H0512WS-1WR3 | 1 | 5(4.5-5.5) | 12 | 1 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | - | ||||
H0515WS-1WR3 | 1 | 5(4.5-5.5) | 15 | 1 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | - | ||||
H0524WS-1WR3 | 1 | 5(4.5-5.5) | 24 | 1 | 5000VAC or 6000VDC | SIP | 19.50*9.80*12.50 | - |
* For reference only. The detailed info please refer to the datasheet.
