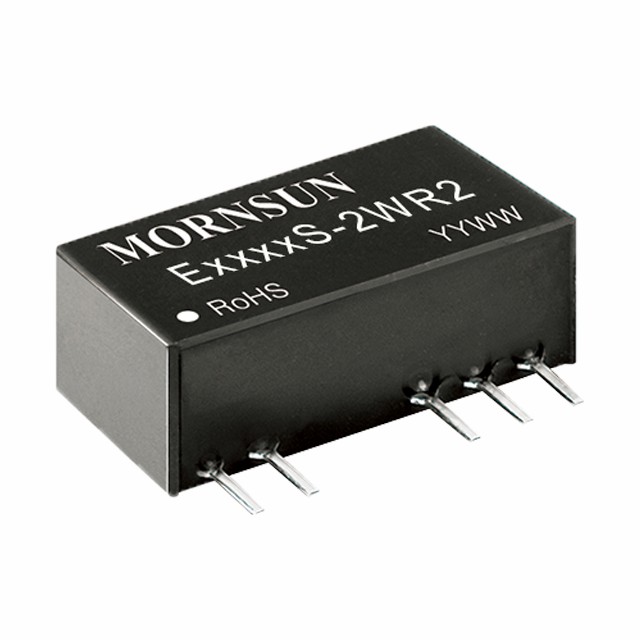

E_S-2WR2

Features

E_S-2WR2 series are designed for use in distributed power supply systems and especially suitable in applications such as pure digital circuits, low frequency analog circuits, relay-driven circuits and data switching circuits.

E_S-2WR2
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
E0503S-2WR2 2 4.75~5.25 ±3.3 2 3000 SIP 19.65*7.05*10.16 3D MODEL - E0503S-2WR2 - sample request buy on line
E0505S-2WR2 2 4.5~5.5 ±5 2 3000 SIP 19.65*7.05*10.16 3D MODEL CE UL CB - E0505S-2WR2 - sample request buy on line
E0509S-2WR2 2 4.75~5.25 ±9 2 3000 SIP 19.65*7.05*10.16 3D MODEL CE UL CB - E0509S-2WR2 - sample request buy on line
E0512S-2WR2 2 4.5~5.5 ±12 2 3000 SIP 19.65*7.05*10.16 3D MODEL CE UL CB - E0512S-2WR2 - sample request buy on line
E0515S-2WR2 2 4.5~5.5 ±15 2 3000 SIP 19.65*7.05*10.16 3D MODEL CE UL CB - E0515S-2WR2 - sample request buy on line
E0524S-2WR2 2 4.5~5.5 ±24 2 3000 SIP 19.65*7.05*10.16 3D MODEL CE UL CB - E0524S-2WR2 - sample request buy on line
E1203S-2WR2 2 10.8~13.2 ±3.3 2 3000 SIP 19.65*7.05*10.16 3D MODEL - E1203S-2WR2 - sample request buy on line
E1205S-2WR2 2 10.8~13.2 ±5 2 3000 SIP 19.65*7.05*10.16 3D MODEL CE UL CB - E1205S-2WR2 - sample request buy on line
E1209S-2WR2 2 10.8~13.2 ±9 2 3000 SIP 19.65*7.05*10.16 3D MODEL CE UL CB - E1209S-2WR2 - sample request buy on line
E1212S-2WR2 2 10.8~13.2 ±12 2 3000 SIP 19.65*7.05*10.16 3D MODEL CE UL CB - E1212S-2WR2 - sample request buy on line
E1215S-2WR2 2 10.8~13.2 ±15 2 3000 SIP 19.65*7.05*10.16 3D MODEL CE UL CB - E1215S-2WR2 - sample request buy on line
E1515S-2WR2 2 13.5~16.5 ±15 2 3000 SIP 19.65*7.05*10.16 3D MODEL - E1515S-2WR2 - sample request buy on line
E2405S-2WR2 2 21.6~26.4 ±5 2 3000 SIP 19.65*7.05*10.16 3D MODEL CE UL CB - E2405S-2WR2 - sample request buy on line
E2409S-2WR2 2 21.6~26.4 ±9 2 3000 SIP 19.65*7.05*10.16 3D MODEL CE UL CB - E2409S-2WR2 - sample request buy on line
E2412S-2WR2 2 21.6~26.4 ±12 2 3000 SIP 19.65*7.05*10.16 3D MODEL CE UL CB - E2412S-2WR2 - sample request buy on line
E2415S-2WR2 2 21.6~26.4 ±15 2 3000 SIP 19.65*7.05*10.16 3D MODEL CE UL CB - E2415S-2WR2 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
E0503S-2WR2
E0505S-2WR2
E0509S-2WR2
E0512S-2WR2
E0515S-2WR2
E0524S-2WR2
E1203S-2WR2
E1205S-2WR2
E1209S-2WR2
E1212S-2WR2
E1215S-2WR2
E1515S-2WR2
E2405S-2WR2
E2409S-2WR2
E2412S-2WR2
E2415S-2WR2
