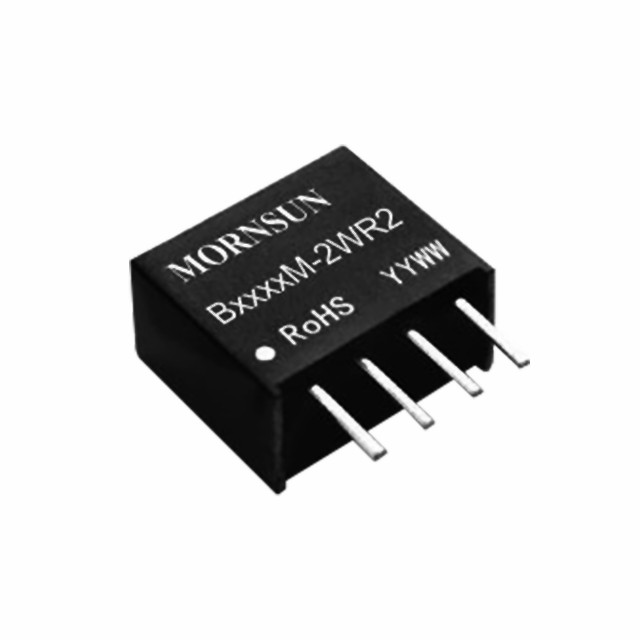

B_M-2WR2

Features

B_M-2WR2 series are specially designed for applications where an isolated voltage is required in a distributed power supply system.

B_M-2WR2
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
B0509M-2WR2 2 4.5~5.5 9 1 1500 SIP 11.60*7.55*10.16 3D MODEL - B0509M-2WR2 - sample request buy on line
B0524M-2WR2 2 4.5~5.5 24 1 1500 SIP 11.60*7.55*10.16 3D MODEL - B0524M-2WR2 - sample request buy on line
B1212M-2WR2 2 10.8~13.2 12 1 1500 SIP 11.60*7.55*10.16 3D MODEL - B1212M-2WR2 - sample request buy on line
B0505M-2WR2 2 4.5~5.5 5 1 1500 SIP 11.60*7.55*10.16 3D MODEL - B0505M-2WR2 - sample request buy on line
B0512M-2WR2 2 4.5~5.5 12 1 1500 SIP 11.60*7.55*10.16 3D MODEL - B0512M-2WR2 - sample request buy on line
B1203M-2WR2 2 10.8~13.2 3.3 1 1500 SIP 11.60*7.55*10.16 3D MODEL - B1203M-2WR2 - sample request buy on line
B2405M-2WR2 2 21.6~26.4 5 1 1500 SIP 11.60*7.55*10.16 3D MODEL - B2405M-2WR2 - sample request buy on line
B2415M-2WR2 2 21.6~26.4 15 1 1500 SIP 11.60*7.55*10.16 3D MODEL - B2415M-2WR2 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
B0509M-2WR2
B0524M-2WR2
B1212M-2WR2
B0505M-2WR2
B0512M-2WR2
B1203M-2WR2
B2405M-2WR2
B2415M-2WR2
