▼ What is PECS?
PECS(Power-Supply & Environment Centralize Supervision System) have a centralized monitoring for power devices in machinery rooms and variations of environment. And environment online monitoring system is mainly responsible for collecting various signals, classifying the signals and then transmitting to the PC. At the same time, it can timely alarm and communicate, etc.



▼ Solution Recommended

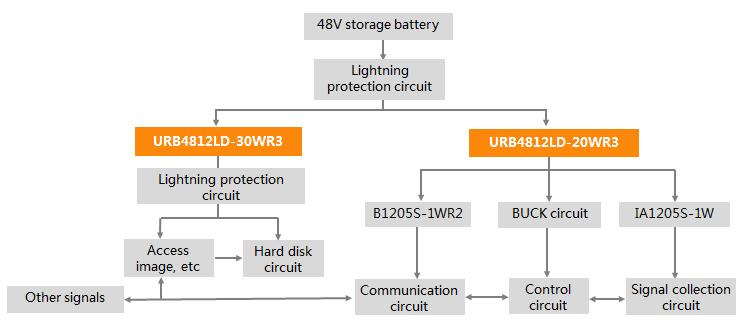

Power solution for all-in-one collector system

All-in-one collector is a comment collector used in PECS, it consists of internal system, main control circuit and external sensor. For communication industry, lower power consumption and higher anti-jamming power module is a better choice.
Mornsun URB4812LD-20WR3 and URB4812LD-30WR3 are recommended to in this solution. The power modules are fully equipped with additional lightning protection circuit and can meet the requirements for lightning protection system and DC/DC conversion in communication application.

▼ Recommendation


√ Isolation voltage: 1500VDC
√ No-load power consumption: 0.15W
√ Power: 20W & 30W
√ Input voltage: 18-75VDC
√ Operating temperature: -40℃~+85℃
√ EMI meet CISPR22/EN55022 CLASS A
√ IEC60950/UL60950/EN60950 certified
√ Input under-voltage protection, output short circuit protection, over-voltage protection, over-current protection
