| Smart home integrates the facilities related to family living by technologies of generic cabling, internet communication, security, automation, and audio & video to improve the living circumstance and save energy at the same time. The power supply system is the core of these facilities and the foundation to ensure each control system well running. |
| Power Supply Solution for Smart Home Controller> |
Smart Household Application> |
| |
| Typical Power Supply Applications of Smart Home |
 |
| |
|
|
|
|

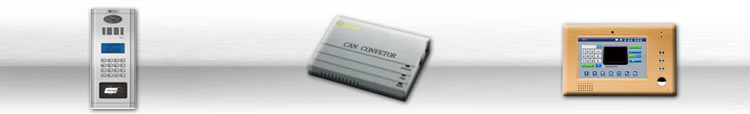

| Building intecom |
|
Security system level 1 bus |
|
Control system gateway of smart home system |
P/N-1: B0505LS-1WR2
B1515LS-1WR2
Function：
Supply isolated power |
|
P/N: TD501DCANH3
Function：
Isolate signal;
supply power |
|
P/N:B0505S-1WR2
Function：
Supply power to control board and isolate communication signal
|
|
| |
 |
| |
|
|
|
|

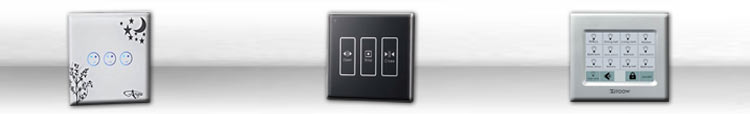

| Smart switch |
|
Automatic curtain controller |
|
Smart lighting controller |
P/N：LS05-15B05SS
Function：
Supply isolated power to mainboard
|
|
P/N: LS01-15B12S
Function：
I
solate signal;
supply power |
|
P/N: LS03-15B05SR2S
Function：
Supply power to control board and isolate communication signa |
|
 |
| The Block Diagram of Smart Switch Control |
 |
Usually, the terminal equipment is operated by the means of low power to control high power (such as relay). Therefore, our above AC/DC converter is mainly used to power the MCU and wireless communication module. Through the instruction and control circuit of MCU to achieve the operation of the smart equipment.
|
| |
|
