• 4:1 wide input voltage range;
• Isolation:1500VDC;
• Operating temperature range: -40°C ~ +85°C;
• Output over voltage,short circuit protection;
• Low ripple&noise;
• International standard pin-out;
• EN60950 certified;
• Meet EN50155 standards with Mornsun EMC auxiliary device;
• A2S (wring mounting) and A4S (35mm rail
  mounting) products featuring reverse voltage protection for input.

• Wide input voltage range : 66-160V;
• Efficiency up to 92%;
• Isolation: 3000VDC;
• Operating temperature range:-40℃~+100℃;
• Low no-load power consumption;
• Input under voltage protection, output over voltage, over current, short circuit, over temperature protection;
• International standard: 1/4 brick;
• Meets requirements of UL60950 and railway
  standard EN50155.

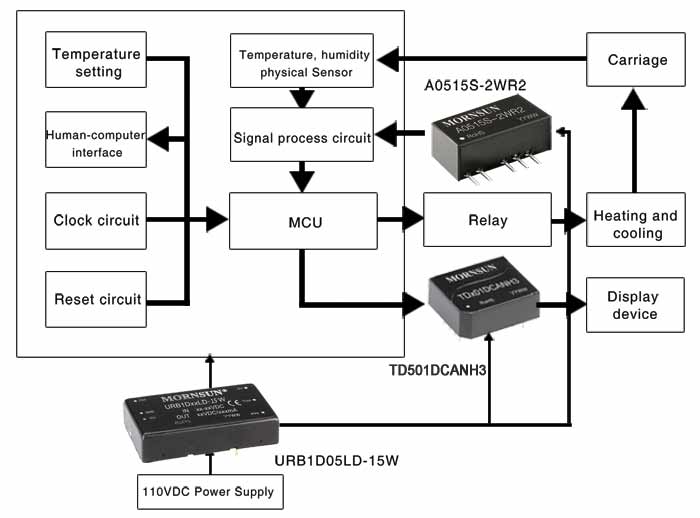

The air conditioning control system controls and adjusts environment temperature in the train, it alerts the staff when a malfunctioning occurs, and shows temperature information on the display.
For main power supply with railway reserved 100VDC, and low supply voltage for control system, the URB1D05LD-15W is recommended.

URB1D05LD-15W

• 0-160VDC input (4:1)
• 6~20 Watts available
• Multiple protections
• Six-sided metal shielding package
