3W AC/DC Converter
High performance at low voltage

LN03-12Bxx Series

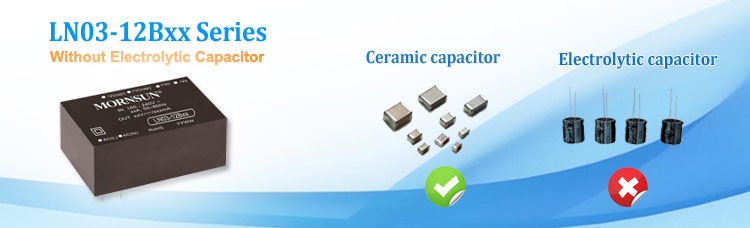

LN series without electrolytic capacitor solves the problems of poor high/low temperature characteristic and short lifespan of power products caused by the electrolytic capacitor.

Application:

LED lighting, instrument and meter, communication and industrial control, mining, electric power industry.

Features:

• Quality assurance: 5 years;

• Wide temperature operating range: –40℃~+70℃ (No requirement for detating at low temperature)
• High EMC performance: EMI meets Class B without external circuit,surge immunity: Level 4 ;
• Isolation voltage: 3000VAC;
• Compact size: 37x24.5x18 mm

LD series with stability at high/low temperature,high performance at low voltage and high EMC performance.

Application:

Instrument and meter, communication and industrial control, and ideal for mining, electric power industry which has high requirements for the reliability and lifespan of the products.

Features:

• Input voltage range:85~264VAC/110~370VDC
• Wide temperature operating range: -25℃~+70℃ (No requirement for detating at low temperature)
• High EMC performance: EMI meets Class A without external circuit, surge immunity: Level 4
• Low ripple: 50mV
• Meets IEC60950, EN60950, UL60950 standards
• Quality assurance: 3 years

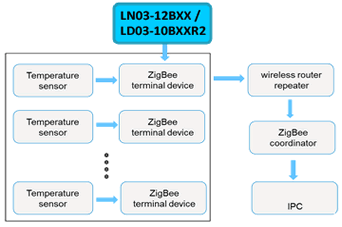

In industrial manufacturing, a temperature monitoring system is used for detecting the inner temperature distribution and variation of blast furnace gear case. ZigBee is a wireless communications technology, which is used for the data transmission of short distance and low power consumption electronic devices.

Mornsun LN03-12Bxx series and LD03-10BxxR2 series can be applied in ZigBee terminal device (temperature data receiver). It outputs stable voltage for zigbee chip and ensures the normal operation of the temperature monitoring system.
