LHE40-23B03

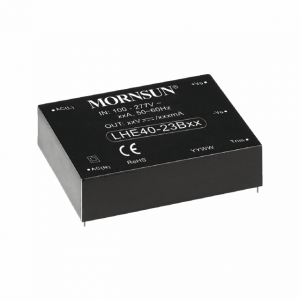

*Picture is for reference only, please refer to the actual product or datasheet for details.
MORNSUN AC/DC-On-board Converter Module
Part No. : LHE40-23B03
Power(W): 26.4
Vin(VAC): 85-305
Vin(VDC): 100-430
Vout(VDC): 3.3
Iout: 8000mA
No. of Outputs: 1
Isolation: 4000VAC
Package: DIP
Dimension(mm): 89.00*63.50*25.00
Footprint & 3D:
Markings:
LHE40-23B05
*Picture is for reference only, please refer to the actual product or datasheet for details.
MORNSUN AC/DC-On-board Converter Module
Part No. : LHE40-23B05
Power(W): 40
Vin(VAC): 85-305
Vin(VDC): 100-430
Vout(VDC): 5
Iout: 8000mA
No. of Outputs: 1
Isolation: 4000VAC
Package: DIP
Dimension(mm): 89.00*63.50*25.00
Footprint & 3D:
Markings:
LHE40-23B12
*Picture is for reference only, please refer to the actual product or datasheet for details.
MORNSUN AC/DC-On-board Converter Module
Part No. : LHE40-23B12
Power(W): 40
Vin(VAC): 85-305
Vin(VDC): 100-430
Vout(VDC): 12
Iout: 3330mA
No. of Outputs: 1
Isolation: 4000VAC
Package: DIP
Dimension(mm): 89.00*63.50*25.00
Footprint & 3D:
Markings:
LHE40-23B15
*Picture is for reference only, please refer to the actual product or datasheet for details.
MORNSUN AC/DC-On-board Converter Module
Part No. : LHE40-23B15
Power(W): 40
Vin(VAC): 85-305
Vin(VDC): 100-430
Vout(VDC): 15
Iout: 2660mA
No. of Outputs: 1
Isolation: 4000VAC
Package: DIP
Dimension(mm): 89.00*63.50*25.00
Footprint & 3D:
Markings:
LHE40-23B24
*Picture is for reference only, please refer to the actual product or datasheet for details.
MORNSUN AC/DC-On-board Converter Module
Part No. : LHE40-23B24
Power(W): 40
Vin(VAC): 85-305
Vin(VDC): 100-430
Vout(VDC): 24
Iout: 1670mA
No. of Outputs: 1
Isolation: 4000VAC
Package: DIP
Dimension(mm): 89.00*63.50*25.00
Footprint & 3D:
Markings:
LHE40-23B48
*Picture is for reference only, please refer to the actual product or datasheet for details.
MORNSUN AC/DC-On-board Converter Module
Part No. : LHE40-23B48
Power(W): 40
Vin(VAC): 85-305
Vin(VDC): 100-430
Vout(VDC): 48
Iout: 830mA
No. of Outputs: 1
Isolation: 4000VAC
Package: DIP
Dimension(mm): 89.00*63.50*25.00
Footprint & 3D:
Markings:
