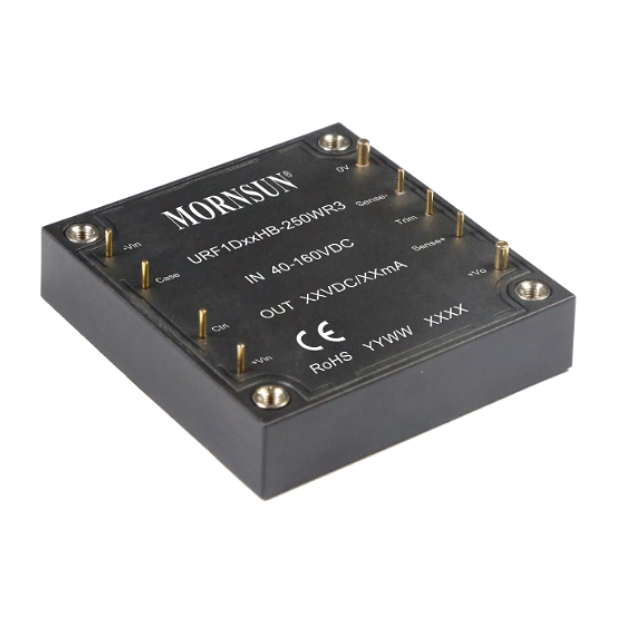

URF1D_HB-250WR3

Features

URF1D_HB-250WR3 series is a high-performance product specifically designed for a variety of railway applications. The DC-DC converters feature 250W output power with no requirement for minimum load, wide input voltage from 40-160VDC, and allowing operating temperature as high as 105℃. Additional product features include input under-voltage protection, output over-voltage, short-circuit, over-current and over-temperature protection, remote On/Off control, remote sense compensation, output voltage trim adjustment. The products meet EN50155 railway standards and are widely used in the centralized lighting, air conditioning and related in on-board equipment.

MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
URF1D40HB-250WR3 250 110(40-160) 40 1 3000VAC DIP 61.00*57.90*13.80
-
URF1D05HB-250WR3 250 110(40-160) 5 1 3000VAC DIP 61*57.9*13.8
URF1D12HB-250WR3 250 110(40-160) 13 1 3000VAC DIP 61*57.9*13.8
URF1D15HB-250WR3 250 110(40-160) 15 1 3000VAC DIP 61*57.9*13.8
URF1D24HB-250WR3 250 110(40-160) 24 1 3000VAC DIP 61*57.9*13.8
URF1D48HB-250WR3 250 110(40-160) 48 1 3000VAC DIP 61*57.9*13.8
URF1D54HB-250WR3 250 110(40-160) 54 1 3000VAC DIP 61*57.9*13.8

* For reference only. The detailed info please refer to the datasheet.
