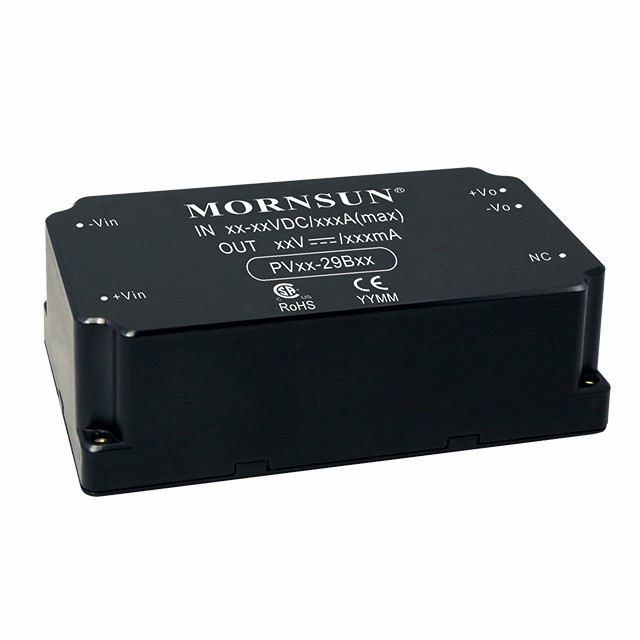

PVxx-29Bxx

Features

PVxx-29Bxx series are regulated DC-DC converters with an ultra-wide DC input of 200-1500VDC. The products feature high efficiency, high reliability, high insulation and high level of safety. This type of power supply is widely used in renewable energy industries such as photovoltaic, power generation, energy storage, inverters and high-voltage DC conversions. The converters provide multiple protection features and guarantee stable and safe operating environments even under abnormal working conditions.

PVxx-29Bxx
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
PV15-29B05 10 200~1500 5 1 4000VAC DIP 125.00*75.00*40.00m 3D MODEL CE - PV15-29B05 - sample request buy on line
PV15-29B12 15 200~1500 12 1 4000VAC DIP 125.00*75.00*40.00m 3D MODEL CE - PV15-29B12 - sample request buy on line
PV15-29B15 15 200~1500 15 1 4000VAC DIP 125.00*75.00*40.00m 3D MODEL CE - PV15-29B15 - sample request buy on line
PV15-29B24 15 200~1500 24 1 4000VAC DIP 125.0*75.0*40.0 3D MODEL CE - PV15-29B24 - sample request buy on line
PV40-29B12 40 200~1500 12 1 4000VAC DIP 70.0*48.0*23.5 3D MODEL CE UL - PV40-29B12 - sample request buy on line
PV40-29B15 40 200~1500 15 1 4000VAC DIP 70.0*48.0*23.5 3D MODEL CE UL - PV40-29B15 - sample request buy on line
PV40-29B24 40 200~1500 24 1 4000VAC DIP 70.0*48.0*23.5 3D MODEL CE UL - PV40-29B24 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
PV15-29B05
PV15-29B12
PV15-29B15
PV15-29B24
PV40-29B12
PV40-29B15
PV40-29B24
