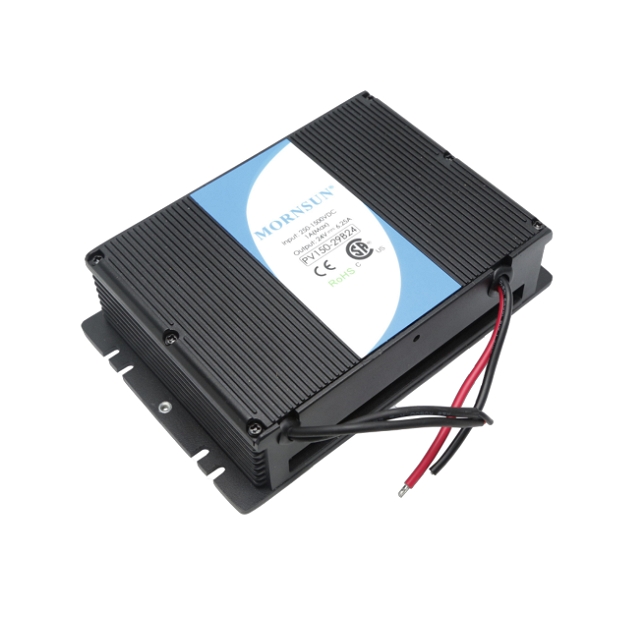

PV150-29Bxx

Features

PV150-29Bxx is a regulated DC-DC converter with an ultra-wide and ultra-high DC input of 250-1500VDC, which design based on standard of CSA-C22.2 No.107.1, EN62109. the products feature high efficiency, high reliability, high insulation and a high level of safety protection. It is widely used in renewable energy industries such as photovoltaic inverter, energy storage systems, charging pile, industrial control. The converters provide multiple protection features and guarantee stable and safe operating environments even under abnormal working conditions. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet.

PV150-29Bxx
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
PV150-29B12 120 250~1500 12 1 4000VAC Chassis 168.00*111.20*42.50 3D MODEL Footprint CE - PV150-29B12 - sample request buy on line
PV150-29B15 120 250~1500 15 1 4000VAC Chassis 168.00*111.20*42.50 3D MODEL Footprint CE - PV150-29B15 - sample request buy on line
PV150-29B24 150 250~1500 24 1 4000VAC Chassis 168.00*111.20*42.50 3D MODEL Footprint CE - PV150-29B24 - sample request buy on line
PV150-29B32 150 250~1500 32 1 4000VAC Chassis 168.00*111.20*42.50 3D MODEL Footprint CE - PV150-29B32 - sample request buy on line
PV150-29B48 150 250~1500 48 1 4000VAC Chassis 168.00*111.20*42.50 3D MODEL Footprint CE - PV150-29B48 - sample request buy on line
PV150-29B28 150 250~1500 28 1 4000VAC Chassis 168.00*111.20*42.50 3D MODEL Footprint - PV150-29B28 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
PV150-29B12
PV150-29B15
PV150-29B24
PV150-29B32
PV150-29B48
PV150-29B28
