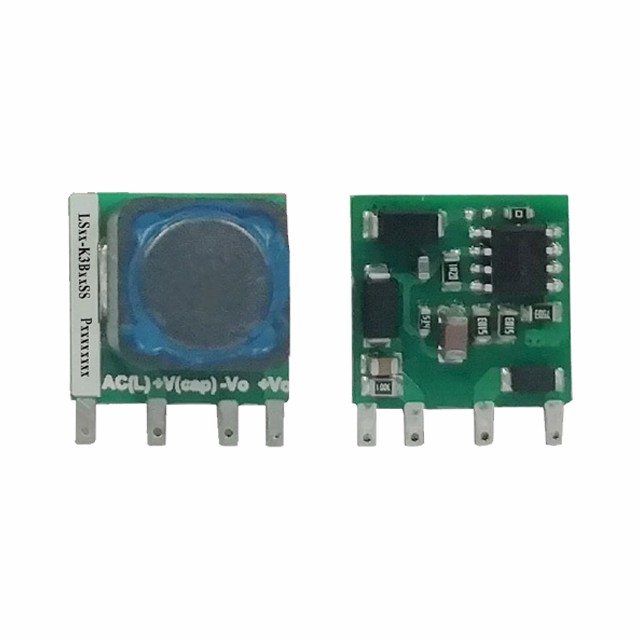

LSxx-K3BxxSS

Features

LSxx-K3BxxSS series is one of Mornsun's highly efficient green power AC-DC Converter series. It features wide input voltage range, accepting both DC and AC input voltage, high efficiency and low power consumption. The products are widely used in industrial control instrumentation, electric power applications and smart home type applications, the need to meet UL/CE safety certifications and lower demand for EMC compliance levels. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet.

LSxx-K3BxxSS
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VAC) Vout(VDC) No. of Outputs Isolation(VAC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
LS01-K3B05SS 1 85~305 5 1 - SIP 16.13*15.10*9.50 3D MODEL PCB Symbol Footprint CE - LS01-K3B05SS - sample request buy on line
LS03-K3B12SS 3 85~305 12 1 - SIP 16.13*15.10*9.50 3D MODEL PCB Symbol Footprint CE - LS03-K3B12SS - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
LS01-K3B05SS
LS03-K3B12SS
