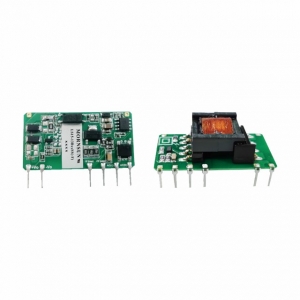

LS15-13BxxSS(-F)

Features

LS15-13BxxSS series is one of Mornsun’s highly efficient green power AC-DC Converter series. They feature ultra-wide input range accepting either AC or DC voltage, high efficiency, low power consumption and CLASS II reinforced insulation. All models are particularly suitable for industrial control, electric power, instrumentation and smart home applications which have high requirement for dimension and don’t have high requirement on EMC. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet.

MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VAC) Vout(VDC) No. of Outputs Isolation(VAC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
LS15-13B03SS(-F) 9.9 85~305 3.3 1 3000 SIP 44.50*24.00*15.00 PCB Symbol CE UL CB - LS15-13B03SS(-F) - sample request buy on line
LS15-13B05SS(-F) 14 85~305 5 1 3000 SIP 44.50*24.00*15.00 PCB Symbol CE UL CB - LS15-13B05SS(-F) - sample request buy on line
LS15-13B09SS(-F) 15 85~305 9 1 3000 SIP 44.50*24.00*15.00 PCB Symbol CE UL CB - LS15-13B09SS(-F) - sample request buy on line
LS15-13B12SS(-F) 15 85~305 12 1 3000 SIP 44.50*24.00*15.00 PCB Symbol CE UL CB - LS15-13B12SS(-F) - sample request buy on line
LS15-13B15SS(-F) 15 85~305 15 1 3000 SIP 44.50*24.00*15.00 PCB Symbol CE UL CB - LS15-13B15SS(-F) - sample request buy on line
LS15-13B24SS(-F) 15 85~305 24 1 3000 SIP 44.50*24.00*15.00 PCB Symbol CE UL CB - LS15-13B24SS(-F) - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
LS15-13B03SS(-F)
LS15-13B05SS(-F)
LS15-13B09SS(-F)
LS15-13B12SS(-F)
LS15-13B15SS(-F)
LS15-13B24SS(-F)
