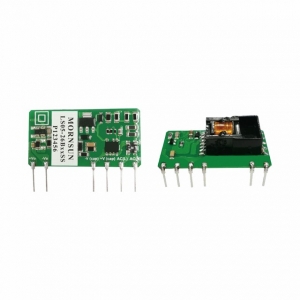

LS05-26BxxSS(-F)

Features

LS05-26BxxSS(-F) series is one of Mornsun's compact size power converters. It features ultra-wide input voltage, accepting both DC and AC input voltage, low power consumption, high efficiency, high reliability, reinforced isolation. The products meet IEC62368, UL62368, EN62368 standard and are widely used in industrial control instrumentation and electric power applications with the requirement for wide input voltage ranges, the need to meet CE safety certifications and lower demand for EMC compliance levels. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of the datasheet.

MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VAC) Vout(VDC) No. of Outputs Isolation(VAC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
LS05-26B03SS 2.805 90~528 3.3 1 4000 SIP 44.50*13.00*24.00 3D MODEL CE - LS05-26B03SS - sample request buy on line
LS05-26B03SS-F 2.805 90~528 3.3 1 4000 PCB mounting 44.50*13.00*24.00 3D MODEL CE - LS05-26B03SS-F - sample request buy on line
LS05-26B05SS 4.25 90~528 5 1 4000 SIP 44.50*13.00*24.00 3D MODEL CE - LS05-26B05SS - sample request buy on line
LS05-26B05SS-F 4.25 90~528 5 1 4000 PCB mounting 44.50*13.00*24.00 3D MODEL CE - LS05-26B05SS-F - sample request buy on line
LS05-26B09SS 5 90~528 9 1 4000 SIP 44.50*13.00*24.00 3D MODEL CE - LS05-26B09SS - sample request buy on line
LS05-26B09SS-F 5 90~528 9 1 4000 PCB mounting 44.50*13.00*24.00 3D MODEL CE - LS05-26B09SS-F - sample request buy on line
LS05-26B12SS 5 90~528 12 1 4000 SIP 44.50*13.00*24.00 3D MODEL CE - LS05-26B12SS - sample request buy on line
LS05-26B12SS-F 5 90~528 12 1 4000 PCB mounting 44.50*13.00*24.00 3D MODEL CE - LS05-26B12SS-F - sample request buy on line
LS05-26B15SS 5 90~528 15 1 4000 SIP 44.50*13.00*24.00 3D MODEL CE - LS05-26B15SS - sample request buy on line
LS05-26B15SS-F 5 90~528 15 1 4000 PCB mounting 44.50*13.00*24.00 3D MODEL CE - LS05-26B15SS-F - sample request buy on line
LS05-26B24SS 5 90~528 24 1 4000 SIP 44.50*13.00*24.00 3D MODEL CE - LS05-26B24SS - sample request buy on line
LS05-26B24SS-F 5 90~528 24 1 4000 PCB mounting 44.50*13.00*24.00 3D MODEL CE - LS05-26B24SS-F - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
LS05-26B03SS
LS05-26B03SS-F
LS05-26B05SS
LS05-26B05SS-F
LS05-26B09SS
LS05-26B09SS-F
LS05-26B12SS
LS05-26B12SS-F
LS05-26B15SS
LS05-26B15SS-F
LS05-26B24SS
LS05-26B24SS-F
