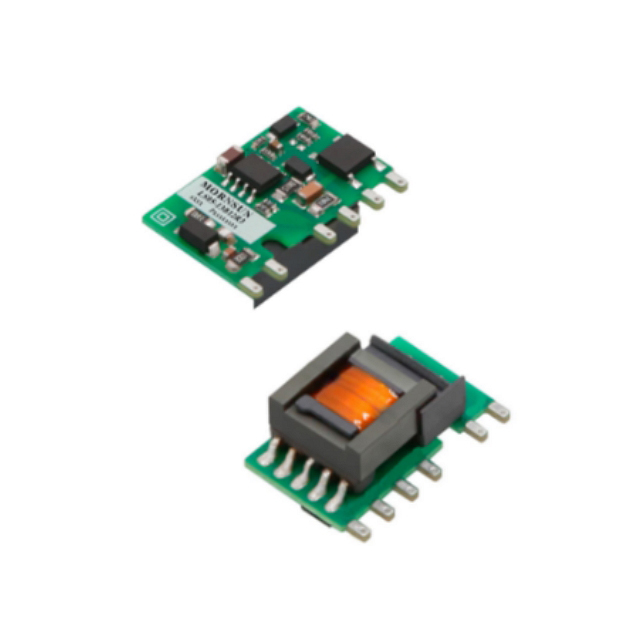

LS05-13BxxR3

Features

LS05-13BxxR3 series is one of Mornsun’s highly efficient green power AC-DC Converter series. They feature wide input range accepting either AC or DC voltage, high efficiency, low power consumption and reinforced isolation. All models are particularly suitable for industrial control, electric power, instrumentation and smart home applications which have high requirement for dimension and don’t have high requirement on EMC. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet.

MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VAC) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VAC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
LS05-13B03R3 3.3 85-305 70-430 3.3 1 3600 SIP 26.40*14.73*11.00
LS05-13B05R3 5 85-305 70-430 5 1 3600 SIP 26.40*14.73*11.00
LS05-13B09R3 5 85-305 70-430 9 1 3600 SIP 26.40*14.73*11.00
LS05-13B12R3 5 85-305 70-430 12 1 3600 SIP 26.40*14.73*11.00
LS05-13B15R3 5 85-305 70-430 15 1 3600 SIP 26.40*14.73*11.00
LS05-13B24R3 5 85-305 70-430 24 1 3600 SIP 26.40*14.73*11.00

* For reference only. The detailed info please refer to the datasheet.
