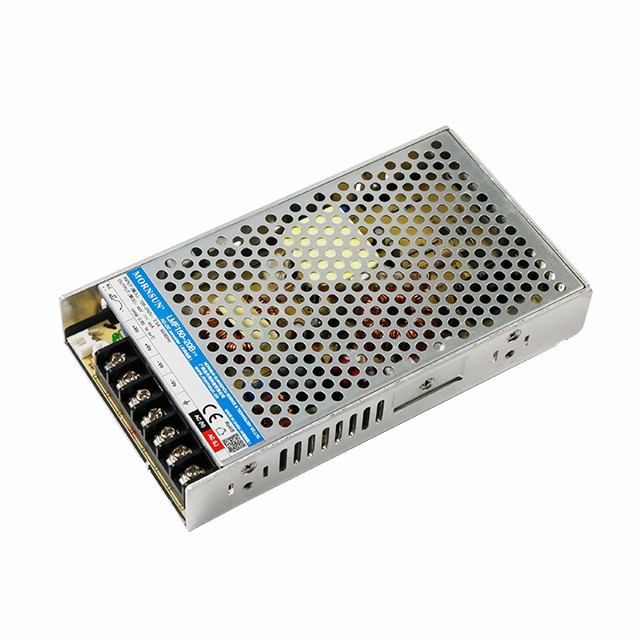

LMF150-20Bxx

Features

LMF150-20Bxx series is one of Mornsun's enclosed AC-DC switching power supply. It features universal AC input and at the same time accepts DC input voltage, cost-effective, built-in active PFC function, high efficiency and high reliability. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC62368, UL62368, EN62368, EN60335, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.

LMF150-20Bxx
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VAC) Nominal Vout and Io(V/A) Operating Temperature No. of Outputs Efficiency(%) Isolation(VAC) Footprint & 3D Certification Datasheet Sample Buy
LMF150-20B05 150 85~264VAC/120~373VDC 5V/30A -30℃ to +70℃ 1 87 4000 Footprint 3D MODEL CE 3C - LMF150-20B05 - sample request buy on line
LMF150-20B12 150 85~264VAC/120~373VDC 12V/12.5A -30℃ to +70℃ 1 88 4000 Footprint 3D MODEL CE 3C - LMF150-20B12 - sample request buy on line
LMF150-20B15 150 85~264VAC/120~373VDC 15V/10A -30℃ to +70℃ 1 88.5 4000 Footprint 3D MODEL CE 3C - LMF150-20B15 - sample request buy on line
LMF150-20B24 151.2 85~264VAC/120~373VDC 24V/6.3A -30℃ to +70℃ 1 89 4000 Footprint 3D MODEL CE 3C - LMF150-20B24 - sample request buy on line
LMF150-20B48 153.6 85~264VAC/120~373VDC 48V/3.2A -30℃ to +70℃ 1 90 4000 Footprint 3D MODEL CE 3C - LMF150-20B48 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
LMF150-20B05
LMF150-20B12
LMF150-20B15
LMF150-20B24
LMF150-20B48
