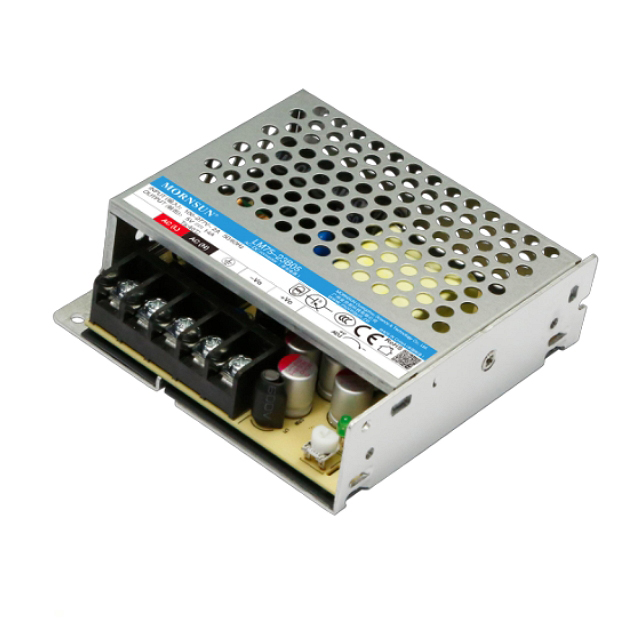

LM75-23Bxx
Features
LM75-23Bxx series is one of Mornsun’s enclosed AC-DC switching power supply. It features universal AC input and at the same time accepts DC input voltage, cost-effective, low no load power consumption, high efficiency, high reliability and double or reinforced insulation. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, EN61558, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.
Product No. | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Iout | Efficiency(%) | Isolation | Footprint & 3D | Markings | Datasheet | Sample | Buy |
LM75-23B05 | 70 | 85-305 | 120-430 | 5 | 14A | 85 | 4000VAC | |||||
LM75-23B12 | 72 | 85-305 | 120-430 | 12 | 6A | 87 | 4000VAC | |||||
LM75-23B15 | 75 | 85-305 | 120-430 | 15 | 5A | 87 | 4000VAC | |||||
LM75-23B55 | 75 | 85-305 | 120-430 | 55 | 1.36A | 90.5 | 4000VAC | |||||
LM75-23B36 | 75.6 | 85-305 | 120-430 | 36 | 2.1A | 89 | 4000VAC | |||||
LM75-23B24 | 76.8 | 85-305 | 120-430 | 24 | 3.2A | 89 | 4000VAC | |||||
LM75-23B48 | 76.8 | 85-305 | 120-430 | 48 | 1.6A | 90.5 | 4000VAC |
* For reference only. The detailed info please refer to the datasheet.
