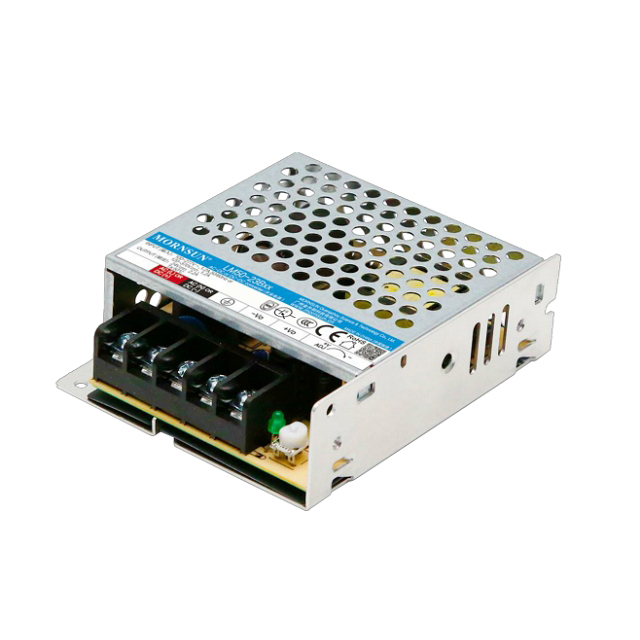

LM50-23Bxx

Features

LM50-23Bxx
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VAC) Nominal Vout and Io(V/A) Operating Temperature No. of Outputs Efficiency(%) Isolation(VAC) 3D Impression Drawing (.stp) Certification Datasheet Sample Buy
LM50-23B05 50 85~305VAC/120~430VDC 5V/10A -30℃ to +70℃ 1 83 4000 - CE UL 3C - LM50-23B05 - sample request buy on line
LM50-23B12 50.4 85~305VAC/120~430VDC 12V/4.2A -30℃ to +70℃ 1 86 4000 - CE UL 3C - LM50-23B12 - sample request buy on line
LM50-23B15 51 85~305VAC/120~430VDC 15V/3.4A -30℃ to +70℃ 1 87 4000 - CE UL 3C - LM50-23B15 - sample request buy on line
LM50-23B36 52.2 85~305VAC/120~430VDC 36V/1.45A -30℃ to +70℃ 1 89 4000 - CE UL 3C - LM50-23B36 - sample request buy on line
LM50-23B24 52.8 85~305VAC/120~430VDC 24V/2.2A -30℃ to +70℃ 1 88 4000 - CE UL 3C - LM50-23B24 - sample request buy on line
LM50-23B48 52.8 85~305VAC/120~430VDC 48V/1.1A -30℃ to +70℃ 1 90 4000 - CE UL 3C - LM50-23B48 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
LM50-23B05
LM50-23B12
LM50-23B15
LM50-23B36
LM50-23B24
LM50-23B48
