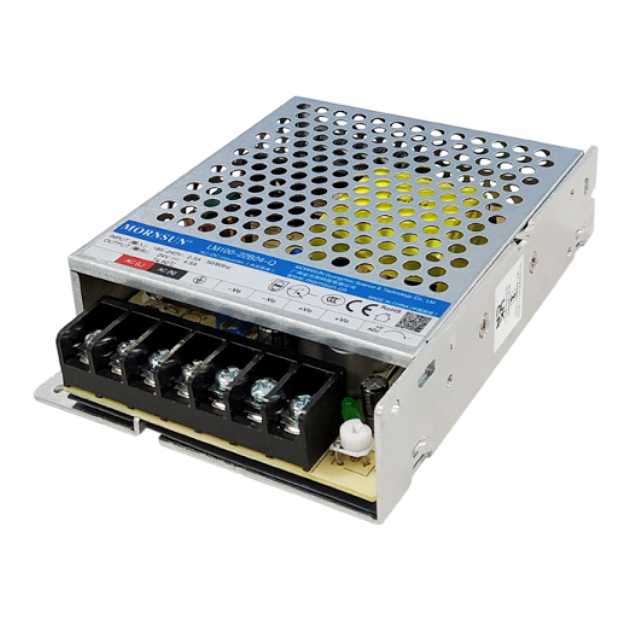

LM100-22Bxx

Features

LM100-22Bxx series is one of Mornsun's enclosed AC-DC switching power supply.It features AC input and at the same time accepts DC input voltage,cost-effective, low no load power consumption,high efficiency and high reliability. These converters offer excellent EMC performance and meet IEC/EN61000-4, CISPR32/EN55032, IEC/UL/EN62368, EN60335, GB4943 standards and they are widely used in areas of industrial, LED, street light control, electricity, security, telecommunications, smart home etc.

LM100-22Bxx
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VAC) Nominal Vout and Io(V/A) Operating Temperature No. of Outputs Efficiency(%) Isolation(VAC) 3D Impression Drawing (.stp) Certification Datasheet Sample Buy
LM100-22B05 90 165~264VAC/200~373VDC 5V/18A -30℃ to +70℃ 1 86 4000 LM100-22Bxx.stp CE 3C - LM100-22B05 - sample request buy on line
LM100-22B36 100.8 165~264VAC/200~373VDC 36V/2.8A -30℃ to +70℃ 1 90 4000 LM100-22Bxx.stp CE 3C - LM100-22B36 - sample request buy on line
LM100-22B12 102 165~264VAC/200~373VDC 12V/8.5A -30℃ to +70℃ 1 87.5 4000 LM100-22Bxx.stp CE 3C - LM100-22B12 - sample request buy on line
LM100-22B15 105 165~264VAC/200~373VDC 15V/7A -30℃ to +70℃ 1 87.5 4000 LM100-22Bxx.stp CE 3C - LM100-22B15 - sample request buy on line
LM100-22B24 108 165~264VAC/200~373VDC 24V/4.5A -30℃ to +70℃ 1 90 4000 LM100-22Bxx.stp CE 3C - LM100-22B24 - sample request buy on line
LM100-22B48 110.4 165~264VAC/200~373VDC 48V/2.3A -30℃ to +70℃ 1 91 4000 LM100-22Bxx.stp CE 3C - LM100-22B48 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
LM100-22B05
LM100-22B36
LM100-22B12
LM100-22B15
LM100-22B24
LM100-22B48
