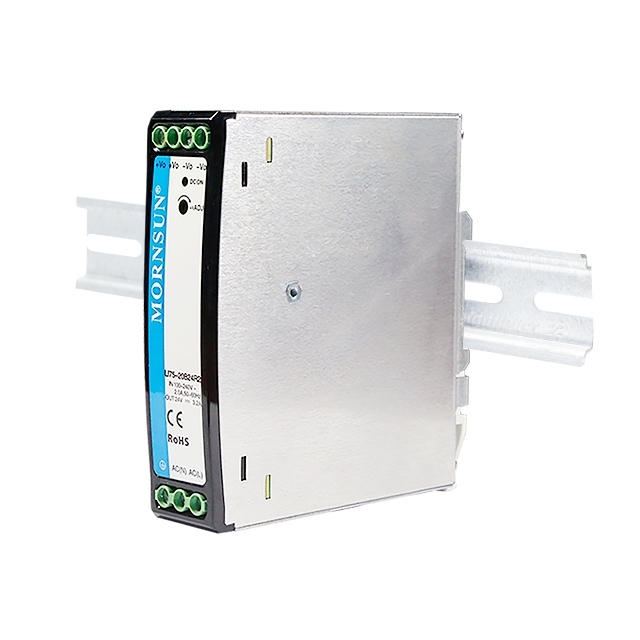

LI75-20BxxR2
Features
LI75-20BxxR2 is Mornsun AC-DC converter series featuring a cost-effective, energy efficient green power supply solution for standard DIN-rail mounting. The products offer a high level of stability and immunity to noise for industrial control equipment, machinery, and other industrial equipment in a variety of harsh environments. These light weight AC-DC converters have an extremely compact design and the standard rail (30mm) installation for space saving. With good EMC performance, compliant with international IEC/EN/UL62368, IEC/EN/UL60335, GB4943, UL508 standards for EMC and safety.
| Product No. | Power(W) | Vin(VAC) | Vout(VDC) | No. of Outputs | Isolation(VAC) | Package | Dimension(mm) | Footprint & 3D | Certification | Datasheet | Sample | Buy |
| LI75-20B12R2 | 75 | 90~264 | 12 | 1 | 4000 | DIN-Rail | 30.00*128.00*120.00 | - |
-
|
-
|
|
|
| LI75-20B24R2 | 75 | 90~264 | 24 | 1 | 4000 | DIN-Rail | 30.00*128.00*120.00 | - |
-
|
-
|
|
|
| LI75-20B48R2 | 75 | 90~264 | 48 | 1 | 4000 | DIN-Rail | 30.00*128.00*120.00 | - |
-
|
-
|
|
|
* For reference only. The detailed info please refer to the datasheet.
| Product No. |
| LI75-20B12R2 |
| LI75-20B24R2 |
| LI75-20B48R2 |
