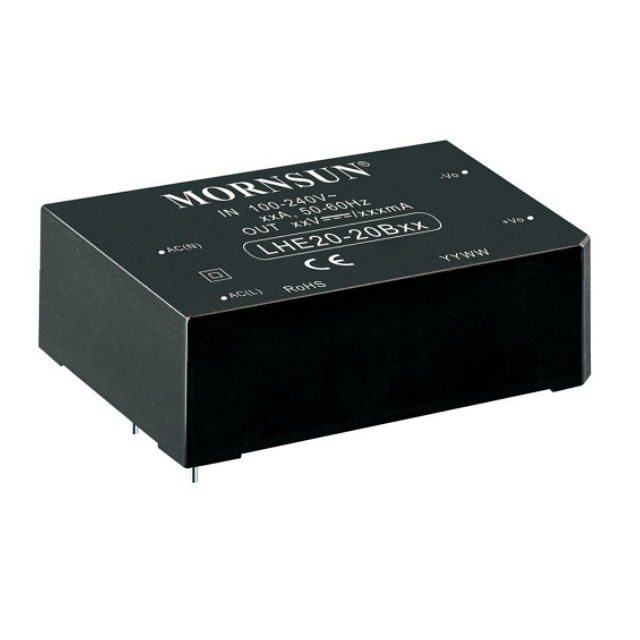

LHE20-20Bxx

Features

LHE20-20Bxx series is a compact size power converter offered by Mornsun. It features universal input voltage, taking both DC and AC input voltage, low power consumption, high efficiency, high reliability, safer isolation. It offers good EMC performance, which meet IEC62368, CISPR32/EN55032, UL62368 and EN62368 standards, and it’s widely used in industrial, office and civil applications. For harsh EMC environment, the application circuit in the datasheet is strongly recommended.

LHE20-20Bxx
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VAC) Vout(VDC) No. of Outputs Isolation(VAC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
LHE20-20B03 11.55 85~264 3.3 1 4000 DIP 62.00*45.00*22.50 3D MODEL CE UL CB - LHE20-20B03 - sample request buy on line
LHE20-20B05 15.5 85~264 5 1 4000 DIP 62.00*45.00*22.50 3D MODEL CE UL CB - LHE20-20B05 - sample request buy on line
LHE20-20B09 20 85~264 9 1 4000 DIP 62.00*45.00*22.50 3D MODEL CE UL CB - LHE20-20B09 - sample request buy on line
LHE20-20B12 20 85~264 12 1 4000 DIP 62.00*45.00*22.50 3D MODEL CE UL CB - LHE20-20B12 - sample request buy on line
LHE20-20B15 20 85~264 15 1 4000 DIP 62.00*45.00*22.50 3D MODEL CE UL CB - LHE20-20B15 - sample request buy on line
LHE20-20B24 20 85~264 24 1 4000 DIP 62.00*45.00*22.50 3D MODEL CE UL CB - LHE20-20B24 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
LHE20-20B03
LHE20-20B05
LHE20-20B09
LHE20-20B12
LHE20-20B15
LHE20-20B24
