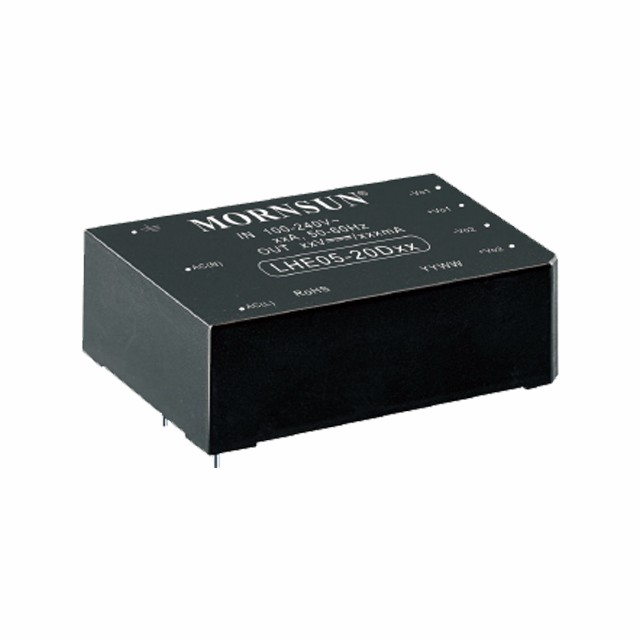

LHE05-20Cxx
Features
LHE05-20Cxx series is a compact size multipath output power converter offered by Mornsun. It features universal input voltage, taking both DC and AC input voltage, low power consumption, high efficiency, high reliability, safer isolation. It offers good EMC performance, and it’s widely used in industrial, office and civil applications. For harsh EMC environment, the application circuit in the datasheet is strongly recommended.
| Product No. | Power(W) | Vin(VAC) | Vin(VDC) | Vout(VDC) | Iout | No. of Outputs | Isolation | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample |
| LHE05-20C0505-01 | 5 | 85-264 | 100-370 | 5,±5 | 800mA,100mA | 3 | 4000VAC | DIP | 48.50*36.00*20.50 | - | |||
| LHE05-20C0512-01 | 5.4 | 85-264 | 100-370 | 5,±12 | 600mA,100mA | 3 | 4000VAC | DIP | 48.50*36.00*20.50 | - | |||
| LHE05-20C0515-01 | 5.4 | 85-264 | 100-370 | 5,±15 | 600mA,80mA | 3 | 4000VAC | DIP | 48.50*36.00*20.50 | - |
* For reference only. The detailed info please refer to the datasheet.
