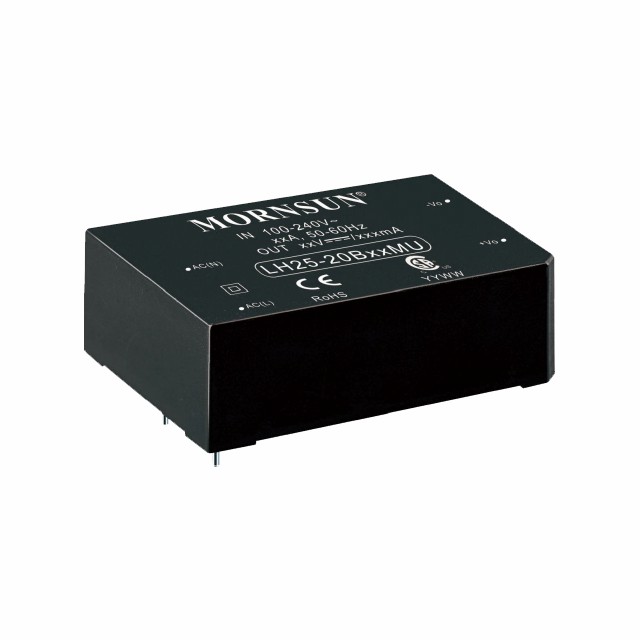

LH25-20BxxMU

Features

LH25-20BxxMU series is a compact size power converter offered by Mornsun. It features universal input voltage, taking both DC and AC Input voltage, low power consumption, high efficiency, high reliability, safer isolation. Meets IEC60601-1, EN60601-1, ANSI/AAMI ES60601-1, CAN/CSA-C22.2 No. 60601-1 standards (2xMOPP), and widely used in medical, industrial, instruments, telecommunication and civil applications. For harsh EMC environment, the application circuit in the datasheet is strongly recommended.

MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VAC) Vout(VDC) No. of Outputs Isolation(VAC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
LH25-20B05MU 25 85-264VAC/100-370VDC 5 1 4000 DIP 70.0*48.0*23.5 3D MODEL CE - LH25-20B05MU - sample request buy on line
LH25-20B12MU 25 85-264VAC/100-370VDC 12 1 4000 DIP 70.0*48.0*23.5 3D MODEL CE - LH25-20B12MU - sample request buy on line
LH25-20B15MU 25 85-264VAC/100-370VDC 15 1 4000 DIP 70.0*48.0*23.5 3D MODEL CE - LH25-20B15MU - sample request buy on line
LH25-20B18MU 25 85-264VAC/100-370VDC 18 1 4000 DIP 70.0*48.0*23.5 3D MODEL CE - LH25-20B18MU - sample request buy on line
LH25-20B24MU 25 85-264VAC/100-370VDC 24 1 4000 DIP 70.0*48.0*23.5 3D MODEL CE - LH25-20B24MU - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.
