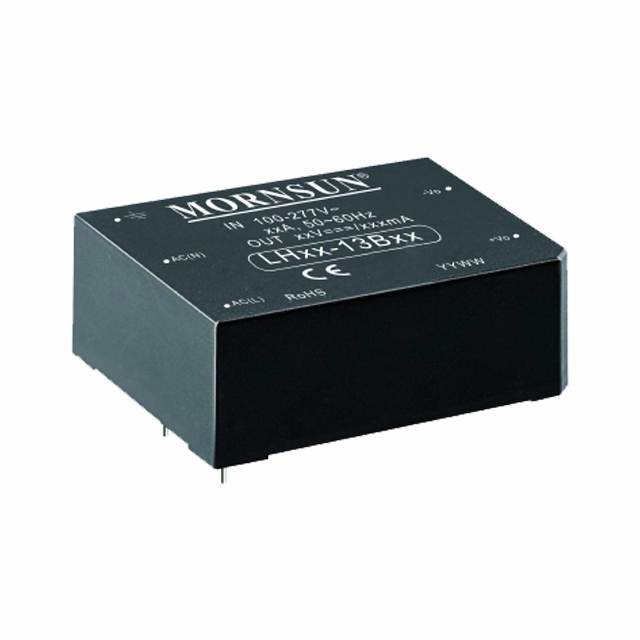

LH10-13Bxx

Features

LH10-13Bxx series is a compact size power converter offered by Mornsun. It features universal input voltage, taking both DC and AC input voltage, low power consumption, high efficiency, high reliability, safer isolation. It offers good EMC performance, which meet IEC/EN61000-4, CISPR22/EN55022, UL60950 and EN60950 standards, and it’s widely used in industrial, office and civil applications.

MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VAC) Vin(VDC) Vout(VDC) Iout No. of Outputs Isolation Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
LH10-13B03 6.6 85-305 100-430 3.3 2000mA 1 3000VAC DIP 55.0*45.0*21.0
LH10-13B05 10 85-305 100-430 5 2000mA 1 3000VAC DIP 55.0*45.0*21.0
LH10-13B09 10 85-305 100-430 9 1100mA 1 3000VAC DIP 55.0*45.0*21.0
LH10-13B12 10 85-305 100-430 12 900mA 1 3000VAC DIP 55.0*45.0*21.0
LH10-13B15 10 85-305 100-430 15 700mA 1 3000VAC DIP 55.0*45.0*21.0
LH10-13B24 10 85-305 100-430 24 450mA 1 3000VAC DIP 55.0*45.0*21.0

* For reference only. The detailed info please refer to the datasheet.
