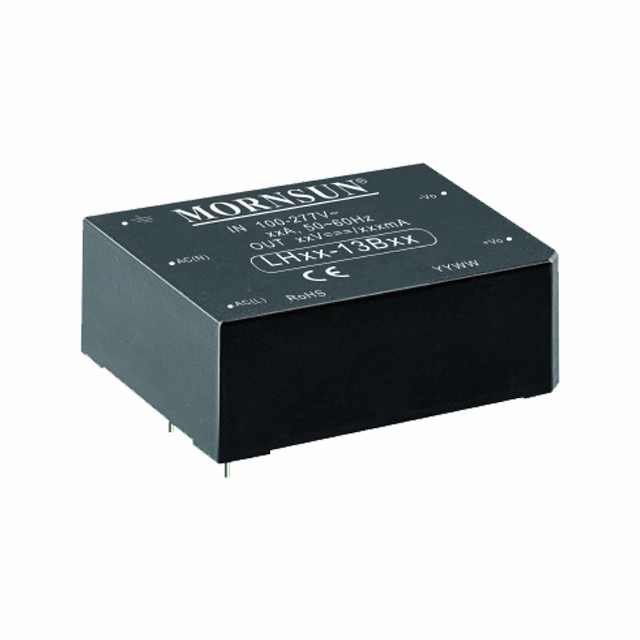

LH05-13Bxx

Features

LH05-13Bxx series is a compact size power converter offered by Mornsun. It features universal input voltage, taking both DC and AC input voltage, low power consumption, high efficiency, high reliability, safer isolation. It offers good EMC performance, which meet IEC/EN61000-4, CISPR22/EN55022, UL60950 and EN60950 standards, and it's widely used in industrial, office and civil applications. Note: Please refer to Design Reference when module being used in a bad EMC environment.

MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VAC) Vin(VDC) Vout(VDC) Iout No. of Outputs Isolation Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
LH05-13B03 4 85-305 100-430 3.3 1250mA 1 3000VAC DIP 55.0*45.0*21.0
LH05-13B05 5 85-305 100-430 5 1000mA 1 3000VAC DIP 55.0*45.0*21.0
LH05-13B09 5 85-305 100-430 9 550mA 1 3000VAC DIP 55.0*45.0*21.0
LH05-13B12 5 85-305 100-430 12 420mA 1 3000VAC DIP 55.0*45.0*21.0
LH05-13B15 5 85-305 100-430 15 330mA 1 3000VAC DIP 55.0*45.0*21.0
LH05-13B24 5.5 85-305 100-430 24 230mA 1 3000VAC DIP 55.0*45.0*21.0

* For reference only. The detailed info please refer to the datasheet.
