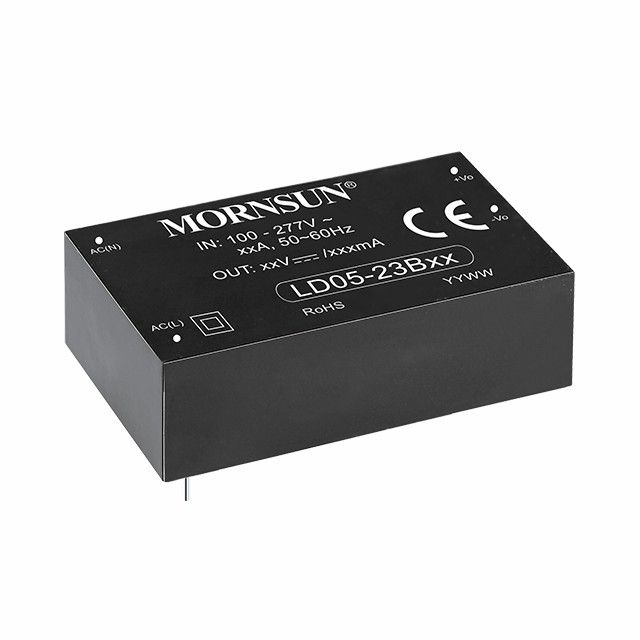

LD05-23Bxx

Features

LD05-23Bxx series is a compact size power converter offered by Mornsun. It features universal input voltage, taking both DC and AC input voltage, low power consumption, high efficiency, high reliability, safer isolation. It offers good EMC performance, and widely used in LED, street lamp control, instruments, telecommunication and civil applications. For harsh EMC environment, the application circuit in the datasheet is strongly recommended.

MORE
Loading...

Swipe to view all →
Product No. Power(W) Vin(VAC) Vin(VDC) Vout(VDC) Iout No. of Outputs Isolation Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
LD05-23B03 4.2 85-305 100-430 3.3 1250mA 1 3000VAC DIP 50.80*25.40*15.16
LD05-23B05 5 85-305 100-430 5 1000mA 1 4000VAC DIP 50.80*25.40*15.16
LD05-23B09 5 85-305 100-430 9 550mA 1 3000VAC DIP 50.80*25.40*15.16
LD05-23B12 5 85-305 100-430 12 420mA 1 3000VAC DIP 50.80*25.40*15.16
LD05-23B15 5 85-305 100-430 15 333mA 1 3000VAC DIP 50.80*25.40*15.16
LD05-23B24 5.5 85-305 100-430 24 230mA 1 3000VAC DIP 50.80*25.40*15.16

* For reference only. The detailed info please refer to the datasheet.
