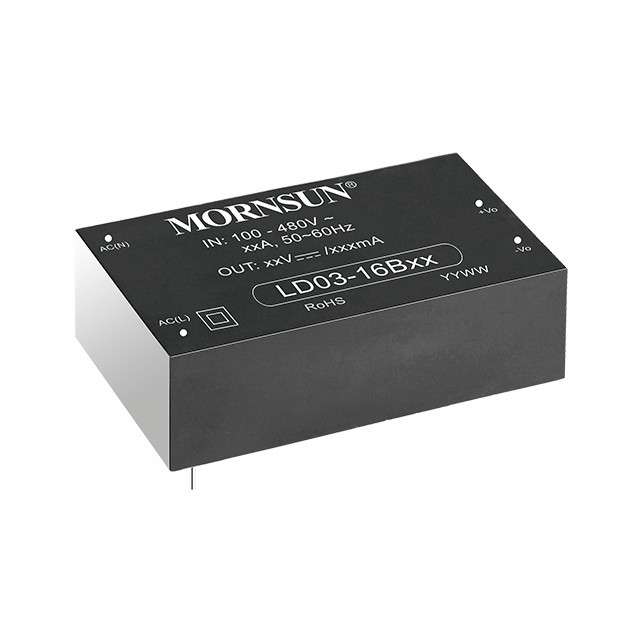

LD03-16Bxx

Features

LD03-16Bxx Series is one of Mornsun’s compact size power converter. It features ultra-wide input voltages, taking both DC and AC input, low power consumption, high efficiency, high reliability, reinforced insulation. The converters meet IEC/ UL/EN62368 and FCC part 15 standards. The converters are widely used in industrial control, instrumentation and electric power applications, requiring extremely wide input voltage range and meeting UL and CE and EMC certification. For extremely harsh EMC environment, we recommend using the application circuit show in Design Reference of this datasheet.

LD03-16Bxx
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VAC) Vout(VDC) No. of Outputs Isolation(VAC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
LD03-16B03 1.65 90~528 3.3 1 3000 DIP 50.80*25.40*15.16 3D MODEL PCB Symbol Footprint CE UL - LD03-16B03 - sample request buy on line
LD03-16B05 2.5 90~528 5 1 3000 DIP 50.80*25.40*15.16 3D MODEL PCB Symbol Footprint CE UL - LD03-16B05 - sample request buy on line
LD03-16B09 3 90~528 9 1 3000 DIP 50.80*25.40*15.16 3D MODEL PCB Symbol Footprint CE UL - LD03-16B09 - sample request buy on line
LD03-16B12 3 90~528 12 1 3000 DIP 50.80*25.40*15.16 3D MODEL PCB Symbol Footprint CE UL - LD03-16B12 - sample request buy on line
LD03-16B15 3 90~528 15 1 3000 DIP 50.80*25.40*15.16 3D MODEL PCB Symbol Footprint CE UL - LD03-16B15 - sample request buy on line
LD03-16B24 3 90~528 24 1 3000 DIP 50.80*25.40*15.16 3D MODEL PCB Symbol Footprint CE UL - LD03-16B24 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
LD03-16B03
LD03-16B05
LD03-16B09
LD03-16B12
LD03-16B15
LD03-16B24
