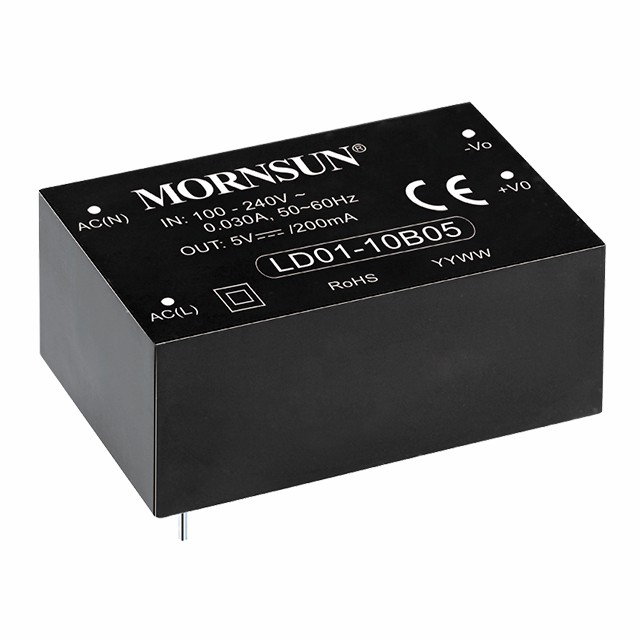

LD01-10Bxx
Features
LD01-10Bxx series is a compact size power converter offered by Mornsun. It features Wide input voltage, taking both DC and AC input voltage, low power consumption, high efficiency, high reliability, safer isolation. It offers good EMC performance, and is UL & CE certified, and widely used in industrial, electricity, instruments, telecommunication and civil applications.
| Product No. | Power(W) | Vin(VAC) | Vout(VDC) | No. of Outputs | Isolation(VAC) | Package | Dimension(mm) | 3D Impression Drawing (.stp) | Certification | Datasheet | Sample | Buy |
| LD01-10B03 | 1 | 85~305 | 3.3 | 1 | 3000 | DIP | 33.70*22.20*18.00 |
|
-
|
-
|
|
|
| LD01-10B05 | 1 | 85~305 | 5 | 1 | 3000 | DIP | 33.70*22.20*18.00 |
|
-
|
-
|
|
|
| LD01-10B09 | 1 | 85~305 | 9 | 1 | 3000 | DIP | 33.70*22.20*18.00 |
|
-
|
-
|
|
|
| LD01-10B12 | 1 | 85~305 | 12 | 1 | 3000 | DIP | 33.70*22.20*18.00 |
|
-
|
-
|
|
|
| LD01-10B15 | 1 | 85~305 | 15 | 1 | 3000 | DIP | 33.70*22.20*18.00 |
|
-
|
-
|
|
|
| LD01-10B24 | 1 | 85~305 | 24 | 1 | 3000 | DIP | 33.70*22.20*18.00 |
|
-
|
-
|
|
|
* For reference only. The detailed info please refer to the datasheet.
| Product No. |
| LD01-10B03 |
| LD01-10B05 |
| LD01-10B09 |
| LD01-10B12 |
| LD01-10B15 |
| LD01-10B24 |
