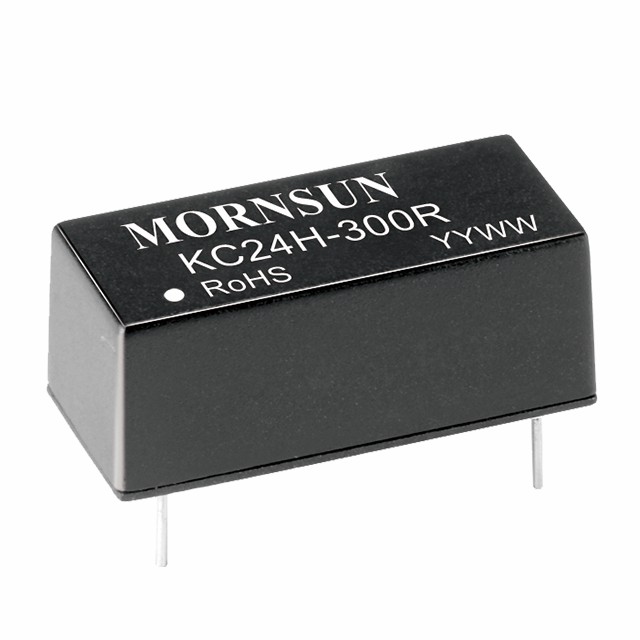

KC24H-R
Features
| Product No. | Vin(VDC) | Iout(mA) | Efficiency(%) | Package | Way of Dimming | 3D Impression Drawing (.stp) | Certification | Datasheet | Sample | Buy |
| KC24H-300RX1 | 5.5~46 | 300 | 95 | DIP | Analogue dimming | - | - |
-
|
|
|
| KC24H-300RX2 | 5.5~46 | 300 | 95 | DIP | PWM dimming | - | - |
-
|
|
|
| KC24H-300RX3 | 5.5~46 | 300 | 95 | DIP | Analogue dimming + PWM dimming | - | - |
-
|
|
|
| KC24H-350R | 5.5~46 | 350 | 95 | DIP | - | - | - |
-
|
|
|
| KC24H-350RX3 | 5.5~46 | 350 | 95 | DIP | Analogue dimming + PWM dimming | - | - |
-
|
|
|
| KC24H-500RX1 | 5.5~46 | 500 | 95 | DIP | Analogue dimming | - | - |
-
|
|
|
| KC24H-500RX3 | 5.5~46 | 500 | 95 | DIP | Analogue dimming + PWM dimming | - | - |
-
|
|
|
| KC24H-600R | 5.5~46 | 600 | 95 | DIP | - | - | - |
-
|
|
|
| KC24H-600RX1 | 5.5~46 | 600 | 95 | DIP | Analogue dimming | - | - |
-
|
|
|
| KC24H-600RX2 | 5.5~46 | 600 | 95 | DIP | PWM dimming | - | - |
-
|
|
|
| KC24H-600RX3 | 5.5~46 | 600 | 95 | DIP | Analogue dimming + PWM dimming | - | - |
-
|
|
|
| KC24H-700R | 5.5~46 | 700 | 95 | DIP | - | - | - |
-
|
|
|
| KC24H-700RX1 | 5.5~46 | 700 | 95 | DIP | Analogue dimming | - | - |
-
|
|
|
| KC24H-700RX2 | 5.5~46 | 700 | 95 | DIP | PWM dimming | - | - |
-
|
|
|
| KC24H-700RX3 | 5.5~46 | 700 | 95 | DIP | Analogue dimming + PWM dimming | - | - |
-
|
|
|
* For reference only. The detailed info please refer to the datasheet.
| Product No. |
| KC24H-300RX1 |
| KC24H-300RX2 |
| KC24H-300RX3 |
| KC24H-350R |
| KC24H-350RX3 |
| KC24H-500RX1 |
| KC24H-500RX3 |
| KC24H-600R |
| KC24H-600RX1 |
| KC24H-600RX2 |
| KC24H-600RX3 |
| KC24H-700R |
| KC24H-700RX1 |
| KC24H-700RX2 |
| KC24H-700RX3 |
