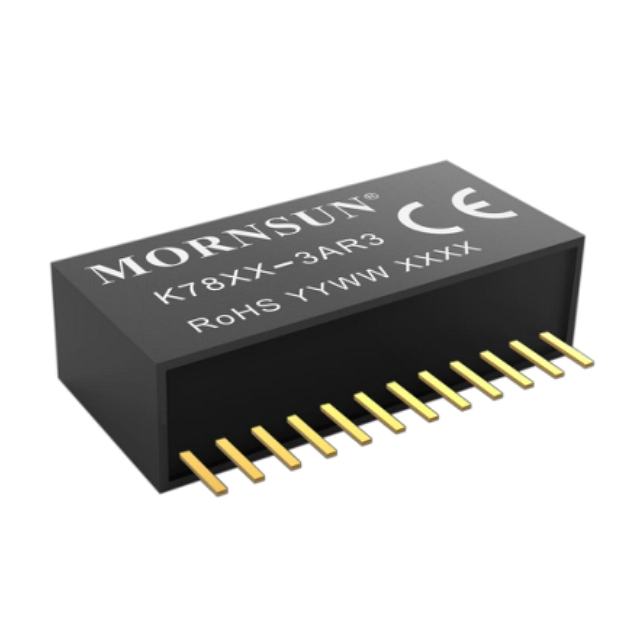

K78xx-3AR3

Features

K78(L)xx-3AR3 series are high efficiency switching regulators. The converters feature high efficiency, low loss, short circuit protection, and there is no need for a heat sink. These products are widely used in applications such as industrial control, instrumentation and electric power.

K78xx-3AR3
MORE
数据加载中

Swipe to view all →
Product No. Vin(VDC) Vout(VDC) Iout(mA) No. of Outputs Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
K7803-3AR3 8~36 3.3 3000 1 SIP 32.15*14.85*9.05 3D MODEL Footprint PCB Symbol CE - K7803-3AR3 - sample request buy on line
K7805-3AR3 8~36 5 3000 1 SIP 32.15*14.85*9.05 3D MODEL Footprint PCB Symbol CE - K7805-3AR3 - sample request buy on line
K78X6-3AR3 10~36 6.5 3000 1 SIP 32.15*14.85*9.05 3D MODEL Footprint PCB Symbol CE - K78X6-3AR3 - sample request buy on line
K7809-3AR3 13~36 9 3000 1 SIP 32.15*14.85*9.05 3D MODEL Footprint PCB Symbol CE - K7809-3AR3 - sample request buy on line
K7812-3AR3 16~36 12 3000 1 SIP 32.15*14.85*9.05 3D MODEL Footprint PCB Symbol CE - K7812-3AR3 - sample request buy on line
K7815-3AR3 19~36 15 3000 1 SIP 32.15*14.85*9.05 3D MODEL Footprint PCB Symbol CE - K7815-3AR3 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
K7803-3AR3
K7805-3AR3
K78X6-3AR3
K7809-3AR3
K7812-3AR3
K7815-3AR3
