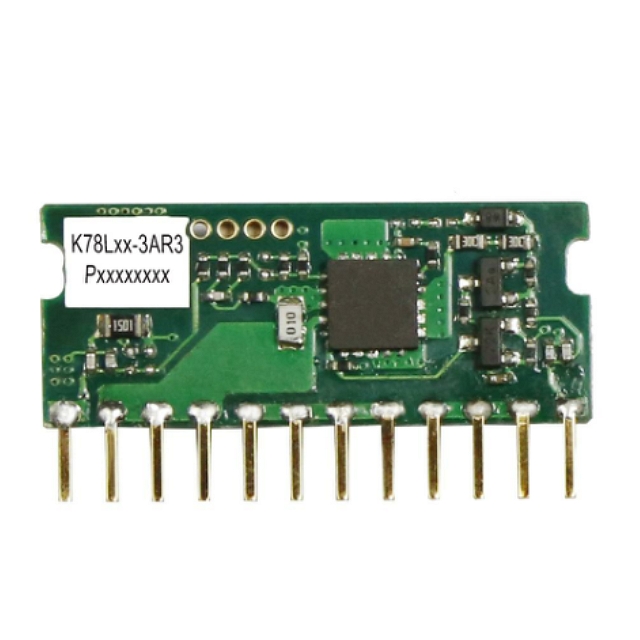

K78Lxx-3AR3
Features
K78(L)xx-3AR3 series are high efficiency switching regulators. The converters feature high efficiency, low loss, short circuit protection, and there is no need for a heat sink. These products are widely used in applications such as industrial control, instrumentation and electric power.
| Product No. | Vin(VDC) | Vout(VDC) | Iout(mA) | No. of Outputs | Package | Dimension(mm) | 3D Impression Drawing (.stp) | Certification | Datasheet | Sample | Buy |
| K78L03-3AR3 | 8~36 | 3.3 | 3000 | 1 | SIP | 32.15*14.85*9.05 |
|
-
|
-
|
|
|
| K78L05-3AR3 | 8~36 | 5 | 3000 | 1 | SIP | 32.15*14.85*9.05 |
|
-
|
-
|
|
|
| K78LX6-3AR3 | 10~36 | 6.5 | 3000 | 1 | SIP | 32.15*14.85*9.05 |
|
-
|
-
|
|
|
| K78L09-3AR3 | 13~36 | 9 | 3000 | 1 | SIP | 32.15*14.85*9.05 |
|
-
|
-
|
|
|
| K78L12-3AR3 | 16~36 | 12 | 3000 | 1 | SIP | 32.15*14.85*9.05 |
|
-
|
-
|
|
|
| K78L15-3AR3 | 19~36 | 15 | 3000 | 1 | SIP | 32.15*14.85*9.05 |
|
-
|
-
|
|
|
* For reference only. The detailed info please refer to the datasheet.
| Product No. |
| K78L03-3AR3 |
| K78L05-3AR3 |
| K78LX6-3AR3 |
| K78L09-3AR3 |
| K78L12-3AR3 |
| K78L15-3AR3 |
