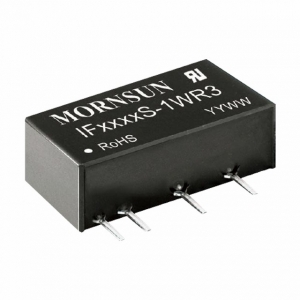

IF05_S-1WR3

Features

IF05_S-1WR3 series are specially designed for applications where an isolated voltage is required in a distributed power supply system. They are suitable for occasions of : pre-interference isolation, ground interference elimination, pure digital circuit, voltage isolation conversion, general low frequency analog circuit, relay drive circuit, etc.

IF05_S-1WR3
MORE
数据加载中

Swipe to view all →
Product No. Power(W) Vin(VDC) Vout(VDC) No. of Outputs Isolation(VDC) Package Dimension(mm) Footprint & 3D Certification Datasheet Sample Buy
IF0503S-1WR3 1 4.75~5.25 3.3 1 3000 SIP 19.65*6.00*10.16 3D MODEL PCB Symbol Footprint CE - IF0503S-1WR3 - sample request buy on line
IF0505S-1WR3 1 4.75~5.25 5 1 3000 SIP 19.65*6.00*10.16 3D MODEL PCB Symbol Footprint CE UL CB - IF0505S-1WR3 - sample request buy on line
IF0509S-1WR3 1 4.75~5.25 9 1 3000 SIP 19.65*6.00*10.16 3D MODEL PCB Symbol Footprint CE UL CB - IF0509S-1WR3 - sample request buy on line
IF0512S-1WR3 1 4.75~5.25 12 1 3000 SIP 19.65*6.00*10.16 3D MODEL PCB Symbol Footprint CE UL CB - IF0512S-1WR3 - sample request buy on line
IF0515S-1WR3 1 4.75~5.25 15 1 3000 SIP 19.65*6.00*10.16 3D MODEL PCB Symbol Footprint CE UL CB - IF0515S-1WR3 - sample request buy on line
IF0524S-1WR3 1 4.75~5.25 24 1 3000 SIP 19.65*6.00*10.16 3D MODEL PCB Symbol Footprint CE - IF0524S-1WR3 - sample request buy on line

* For reference only. The detailed info please refer to the datasheet.

Product No.
IF0503S-1WR3
IF0505S-1WR3
IF0509S-1WR3
IF0512S-1WR3
IF0515S-1WR3
IF0524S-1WR3
